Cable Positioning & Cable Support

UK-based and manufactured brackets that revolutionise cable support and management, Position and run cables with Cableboss brackets.

Buy Positioning

Buy Containment
Video of our fire cable clips and containment brackets from Cableboss UK manufacturer of fire and load tested brackets

Our Cable Support Brackets

Choose the right Cableboss bracket for fast installation, compliant routing, and tidy cable management.

Our Metal Cable Support Brackets

Our fire-tested, metal containment brackets are designed to simplify installation, improve safety, and deliver long-lasting reliability. Engineered in the UK and trusted by installers nationwide.

Learn more

  • CB15-04

  • CB15-02

  • CB15-01

Containment made easy

Strong, Reliable & Easy to Install.

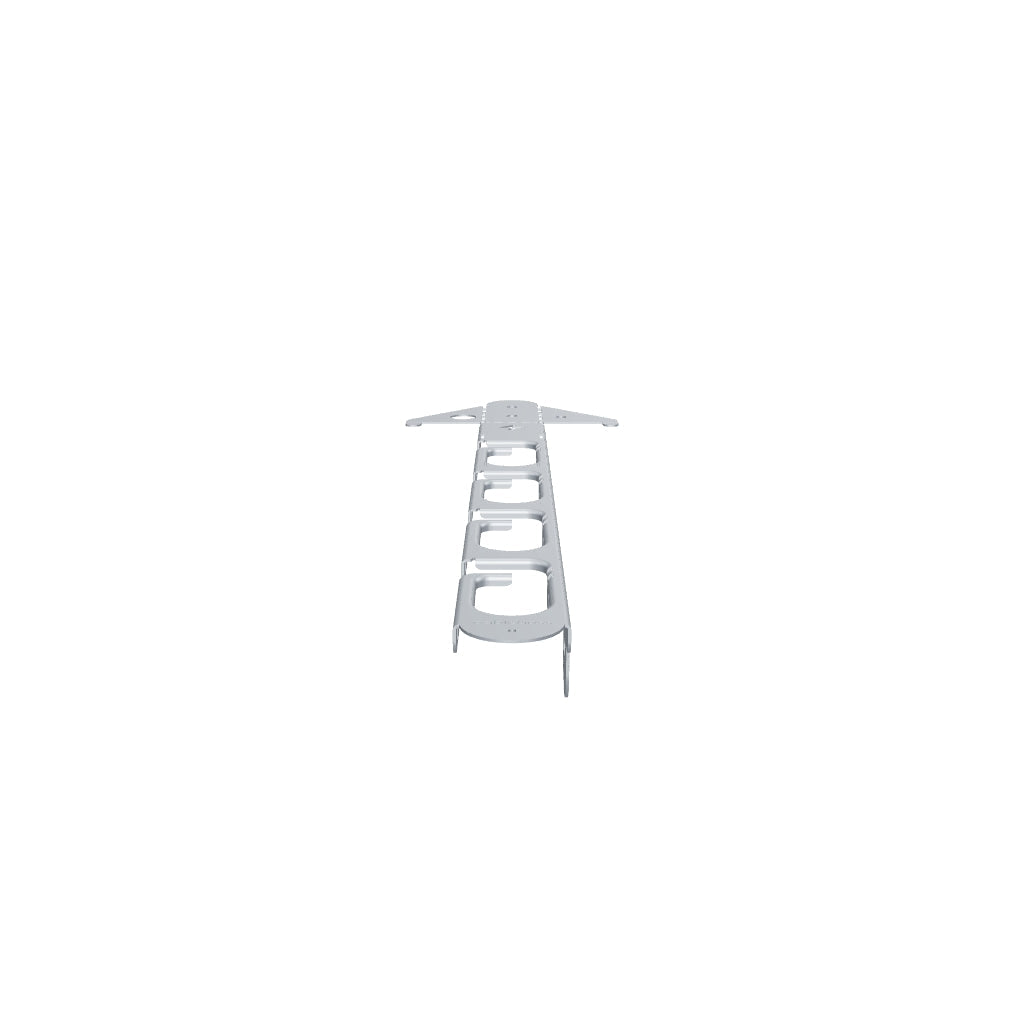

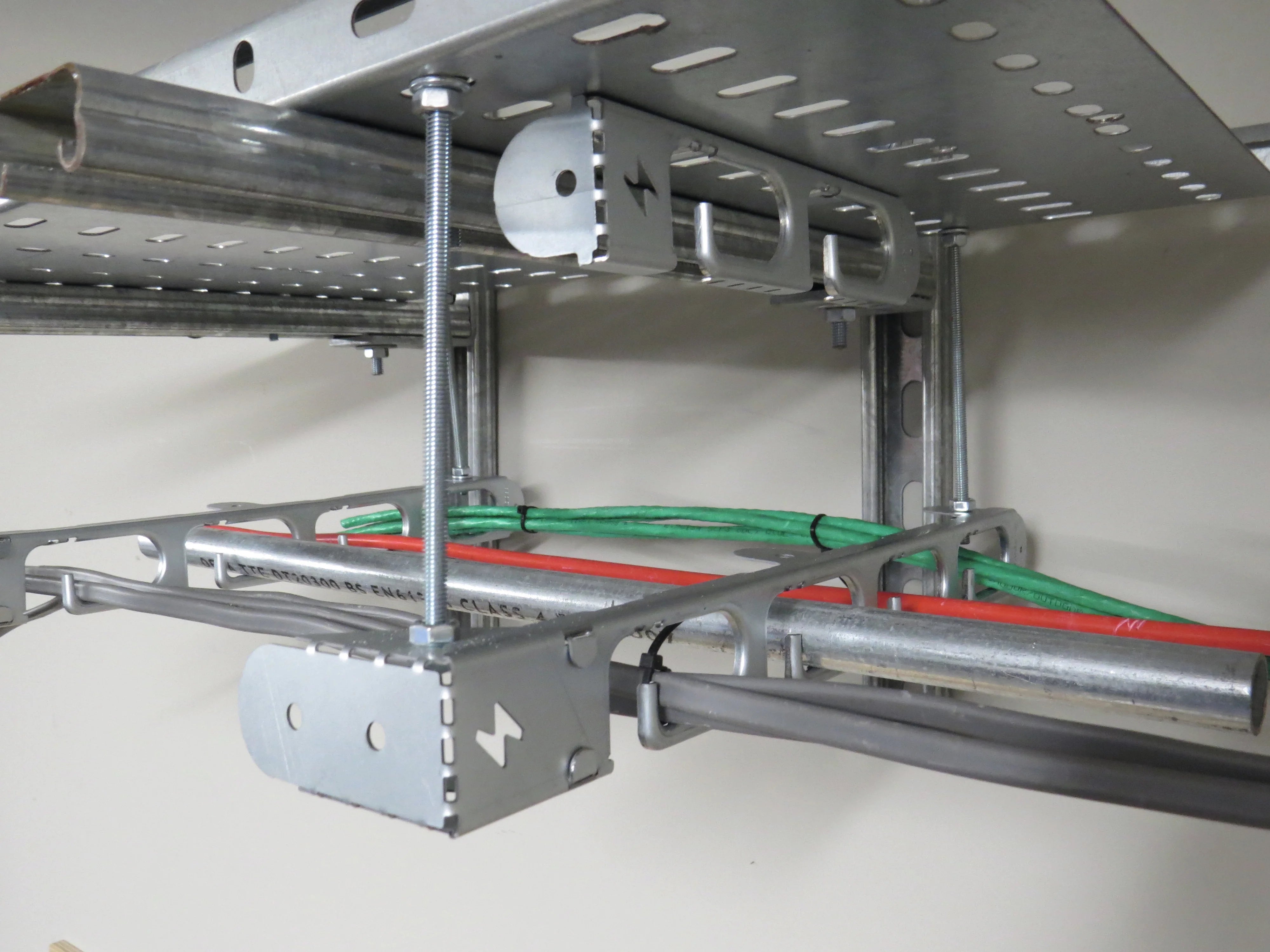

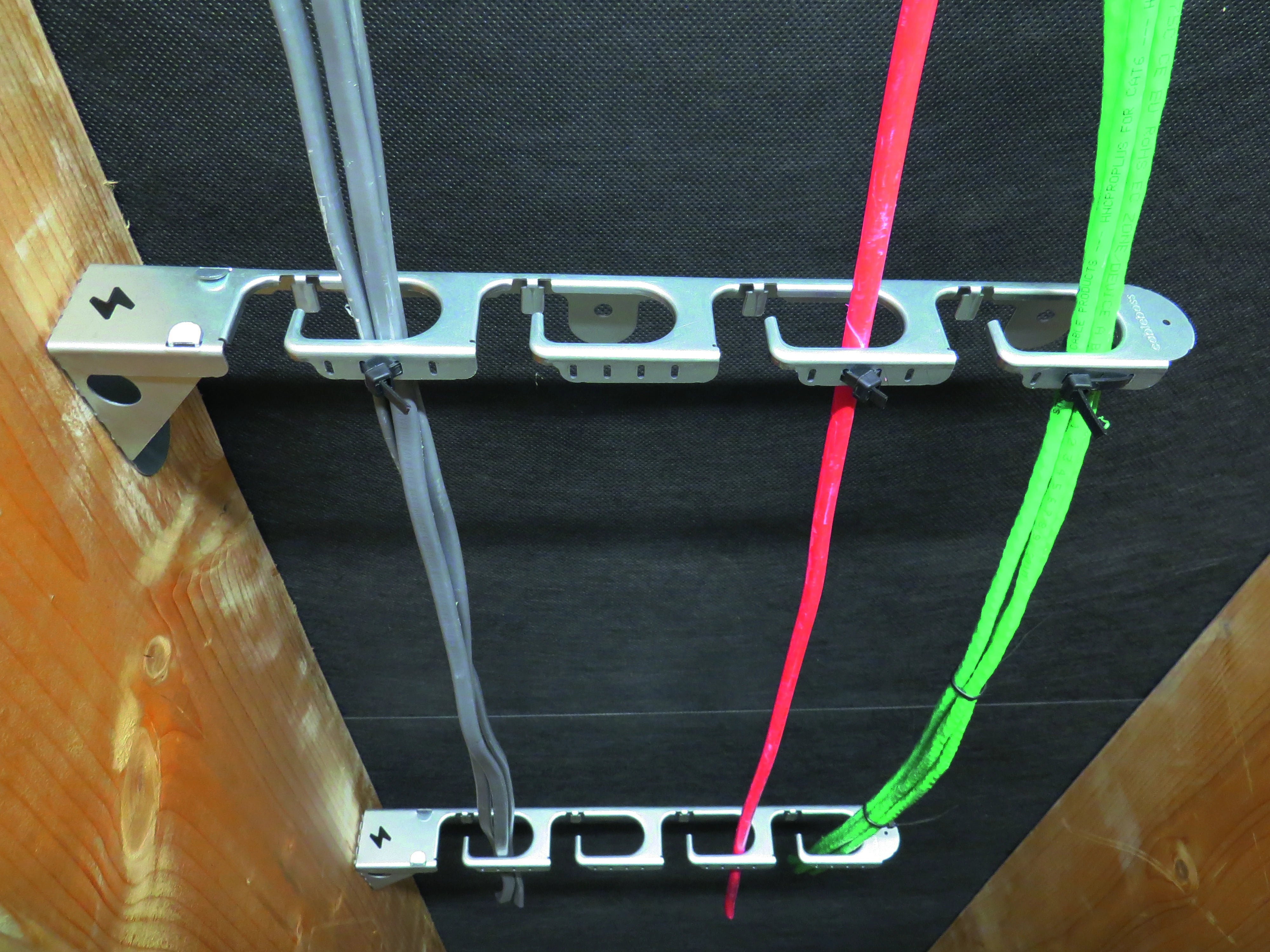

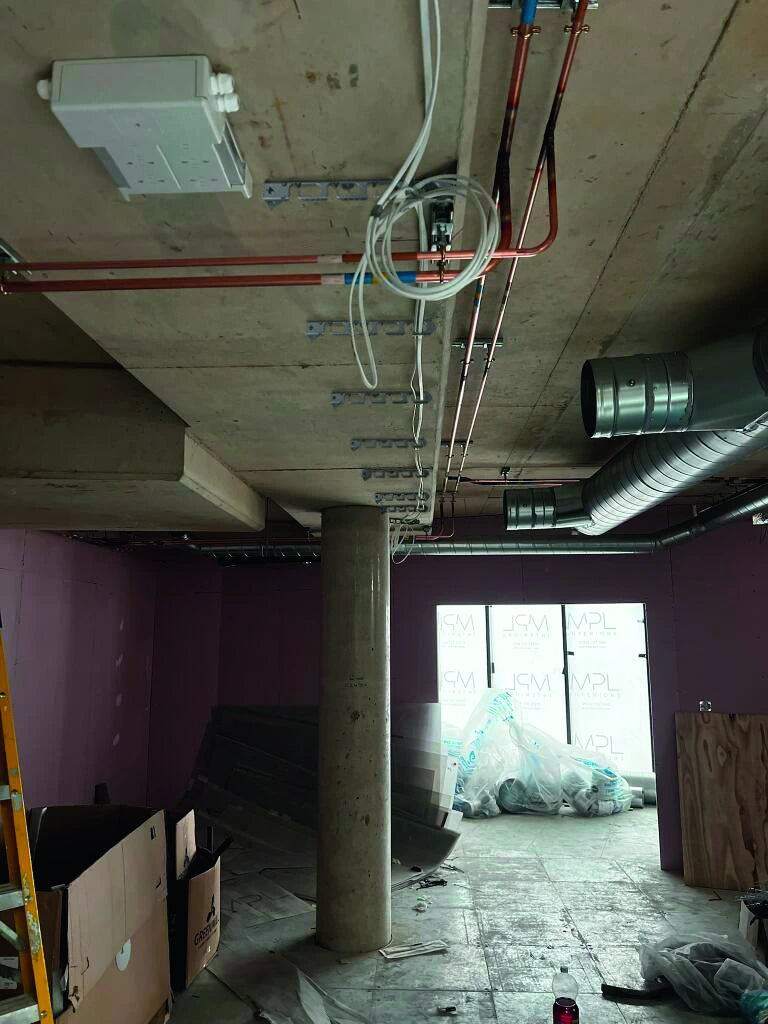

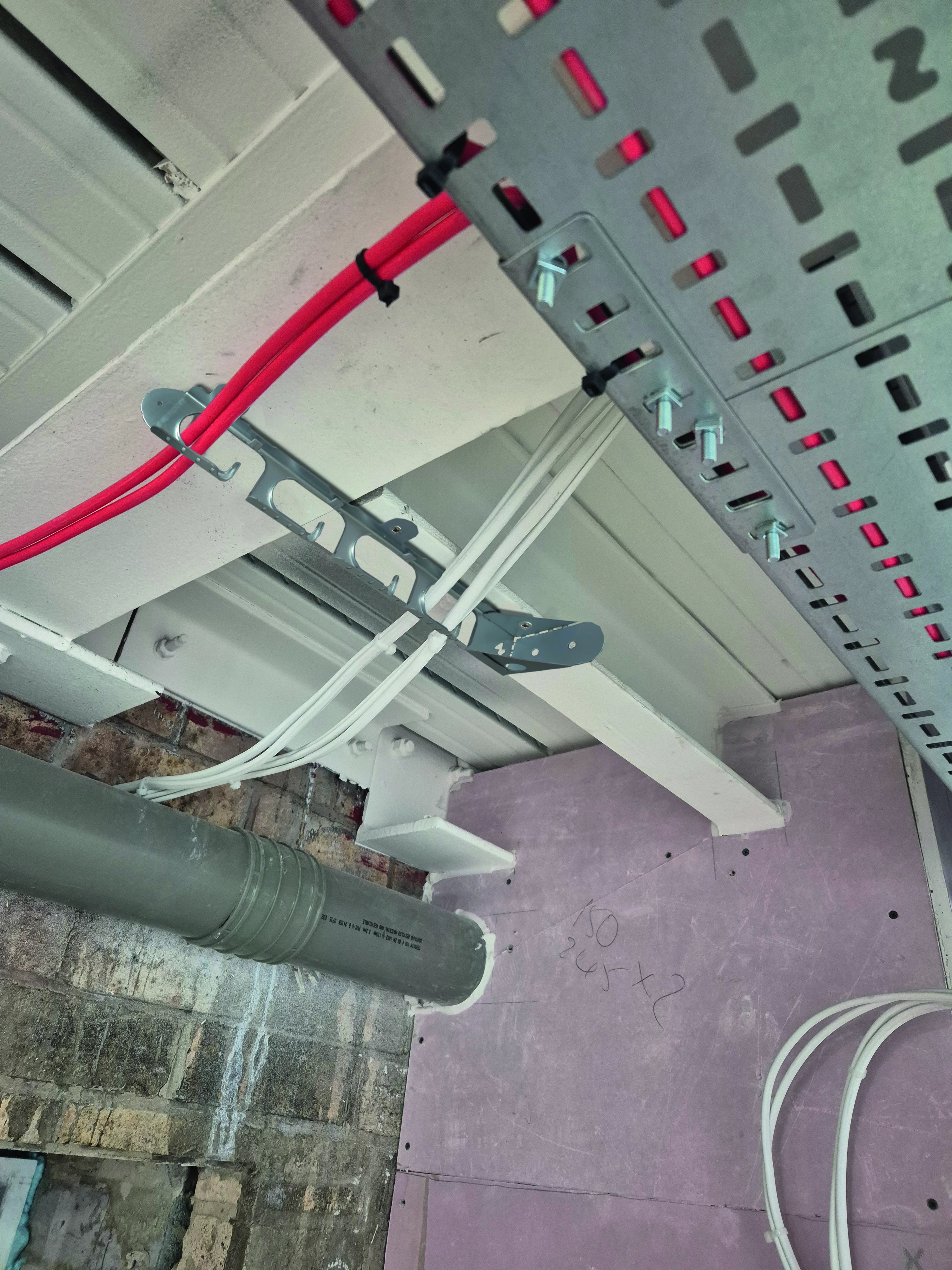

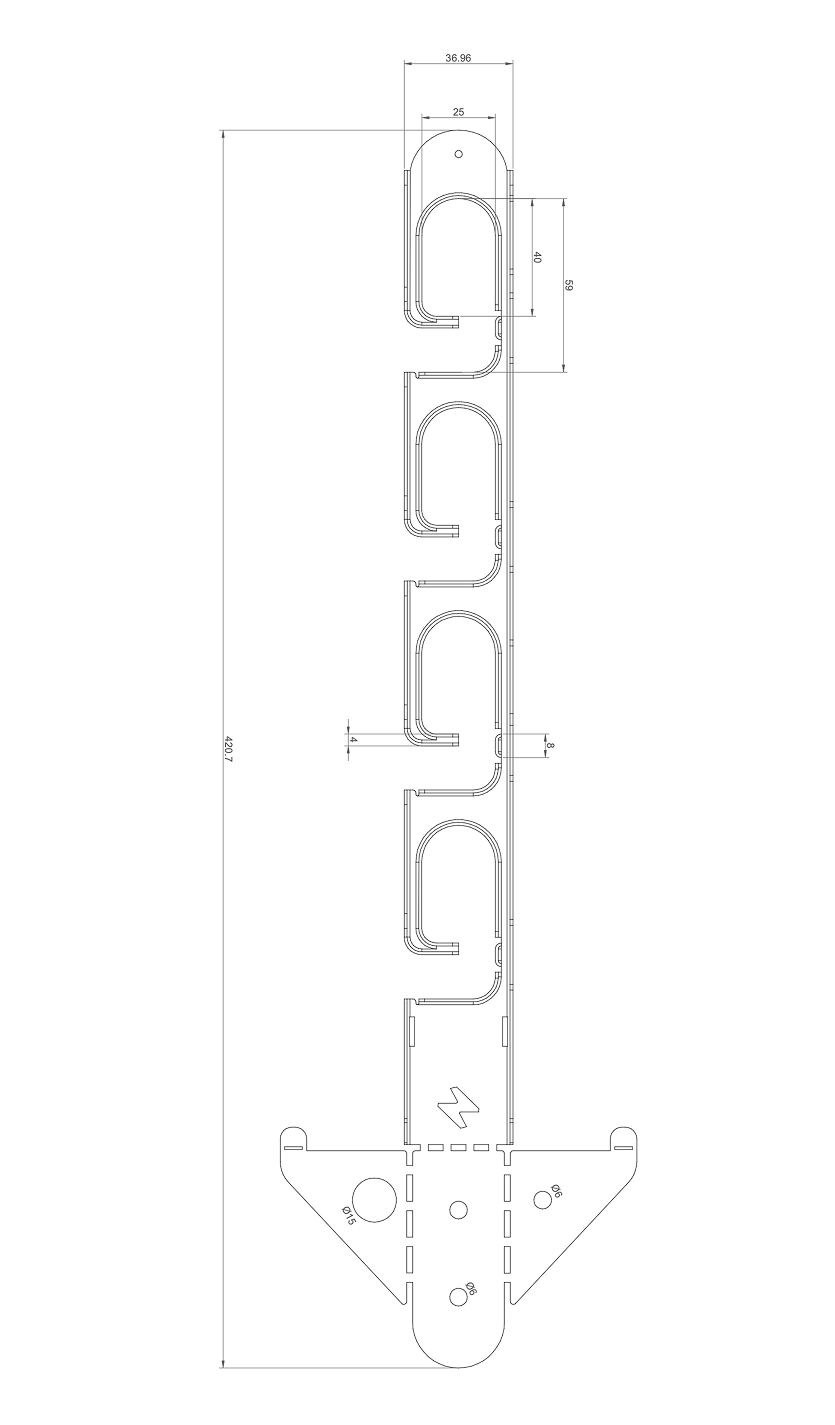

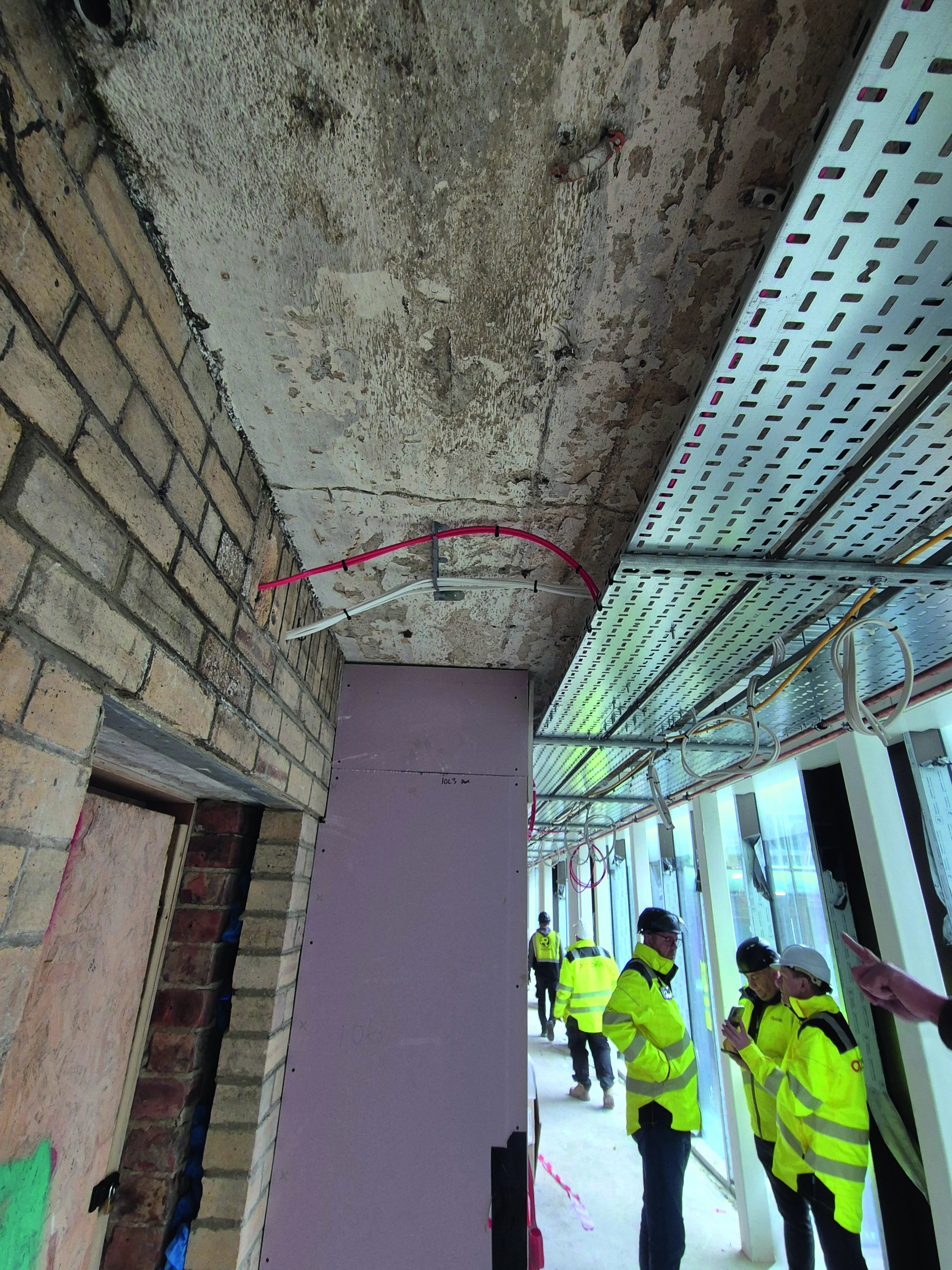

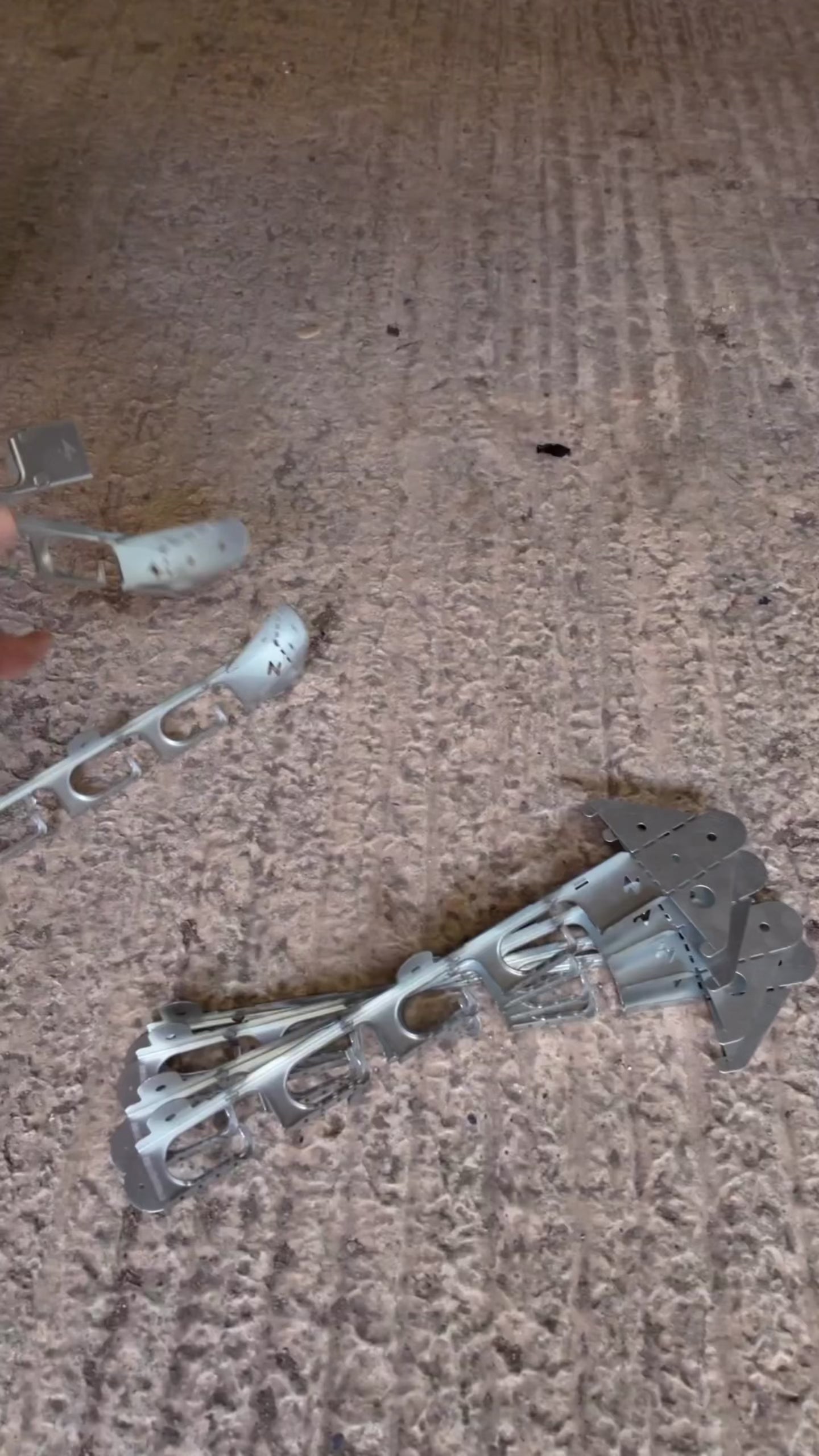

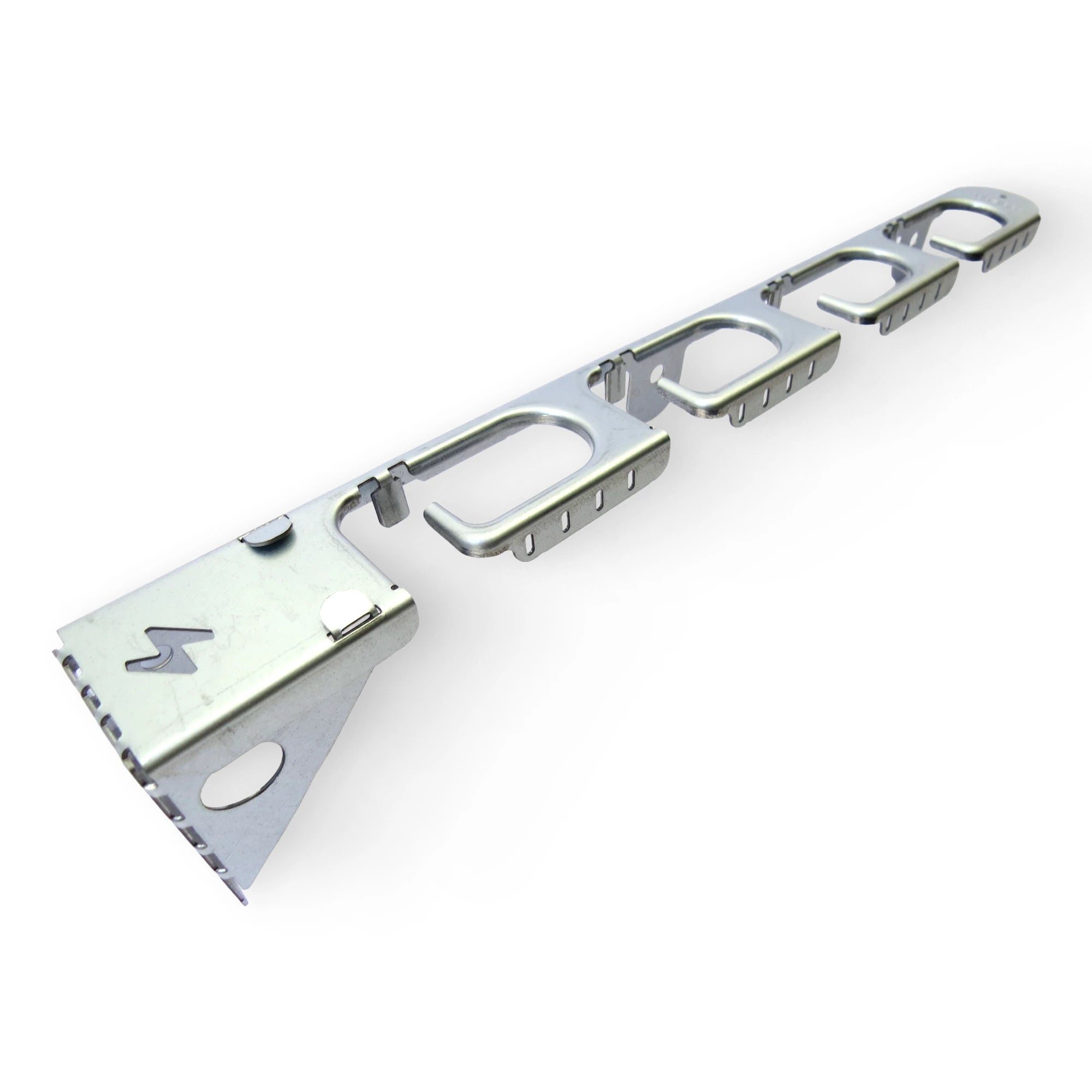

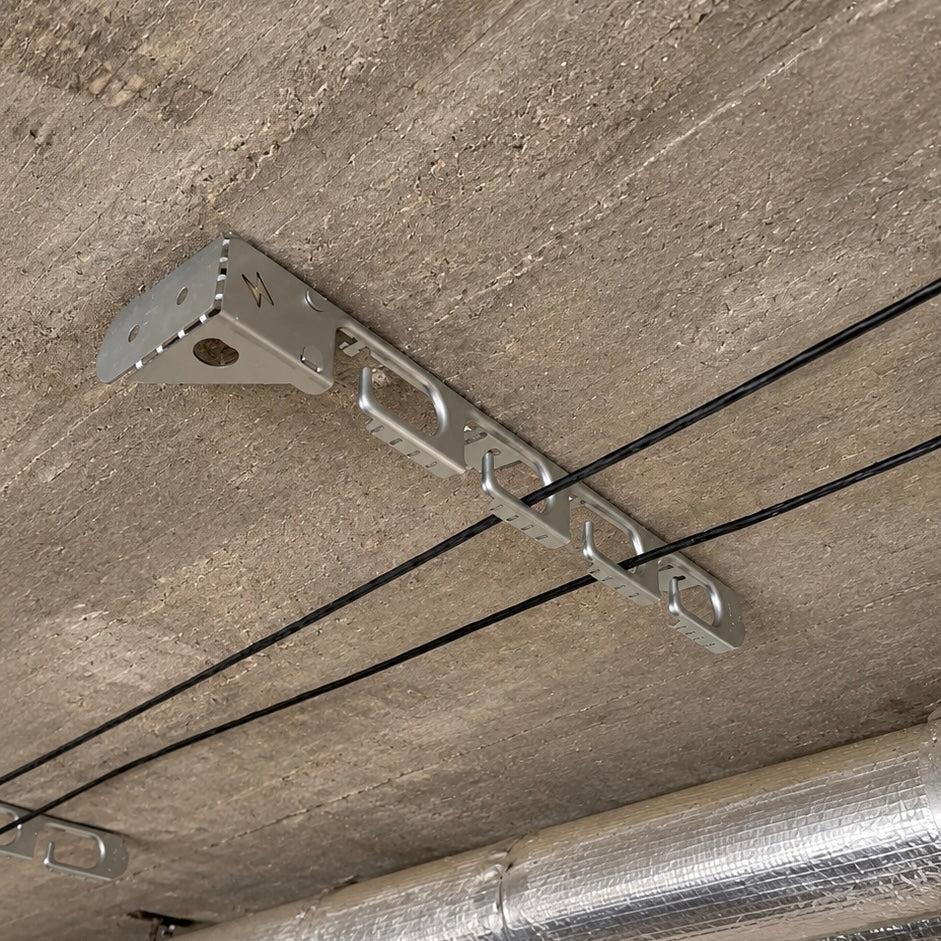

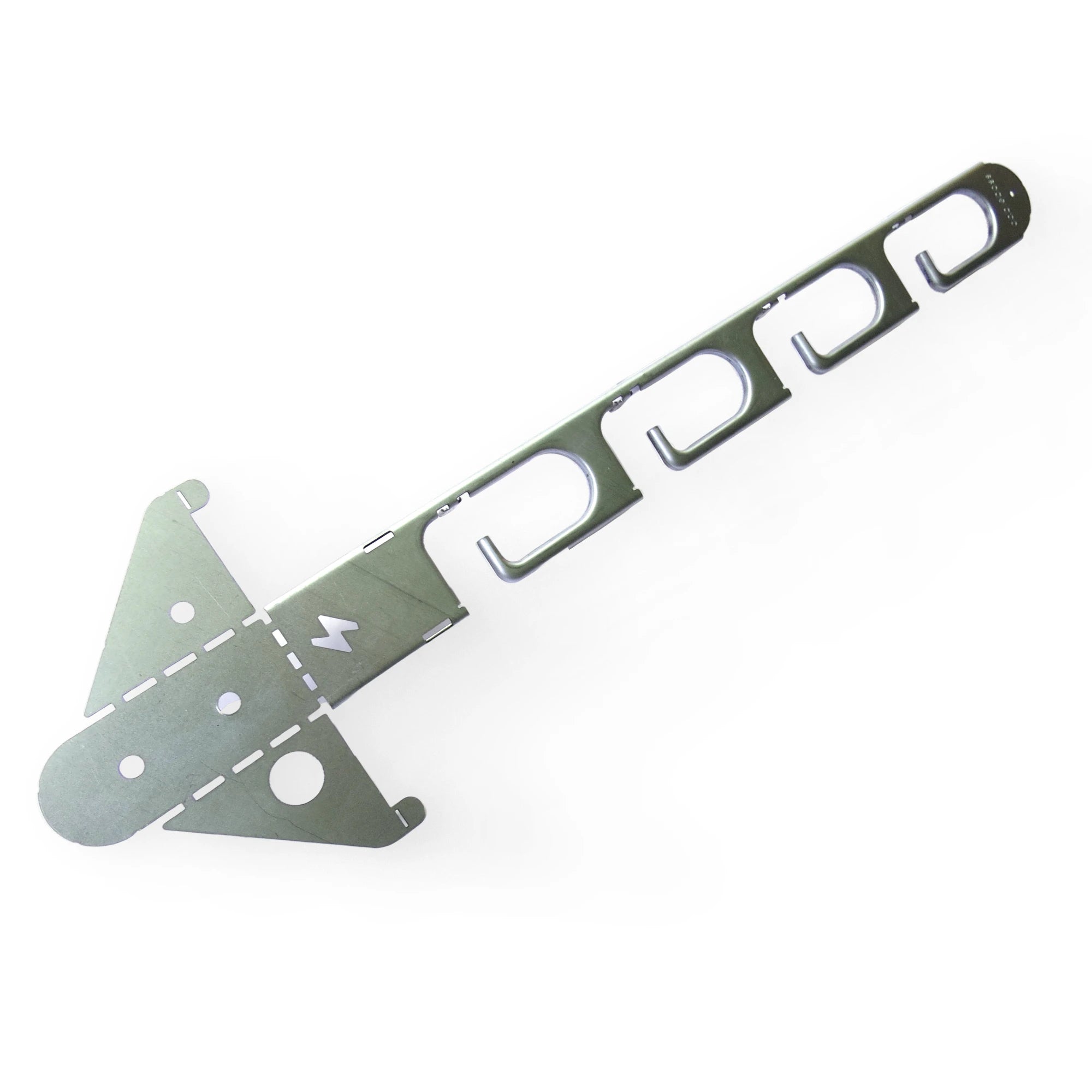

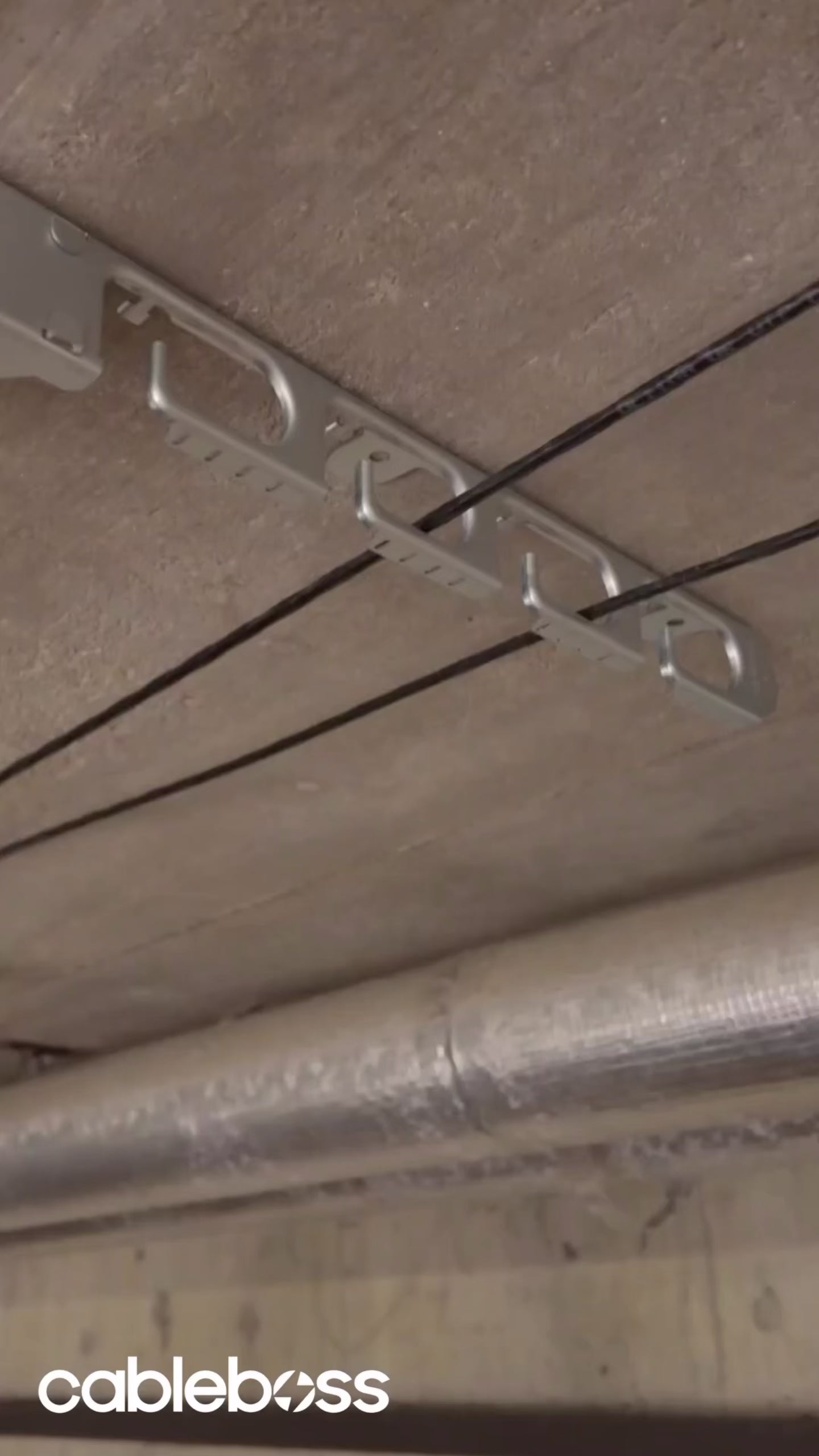

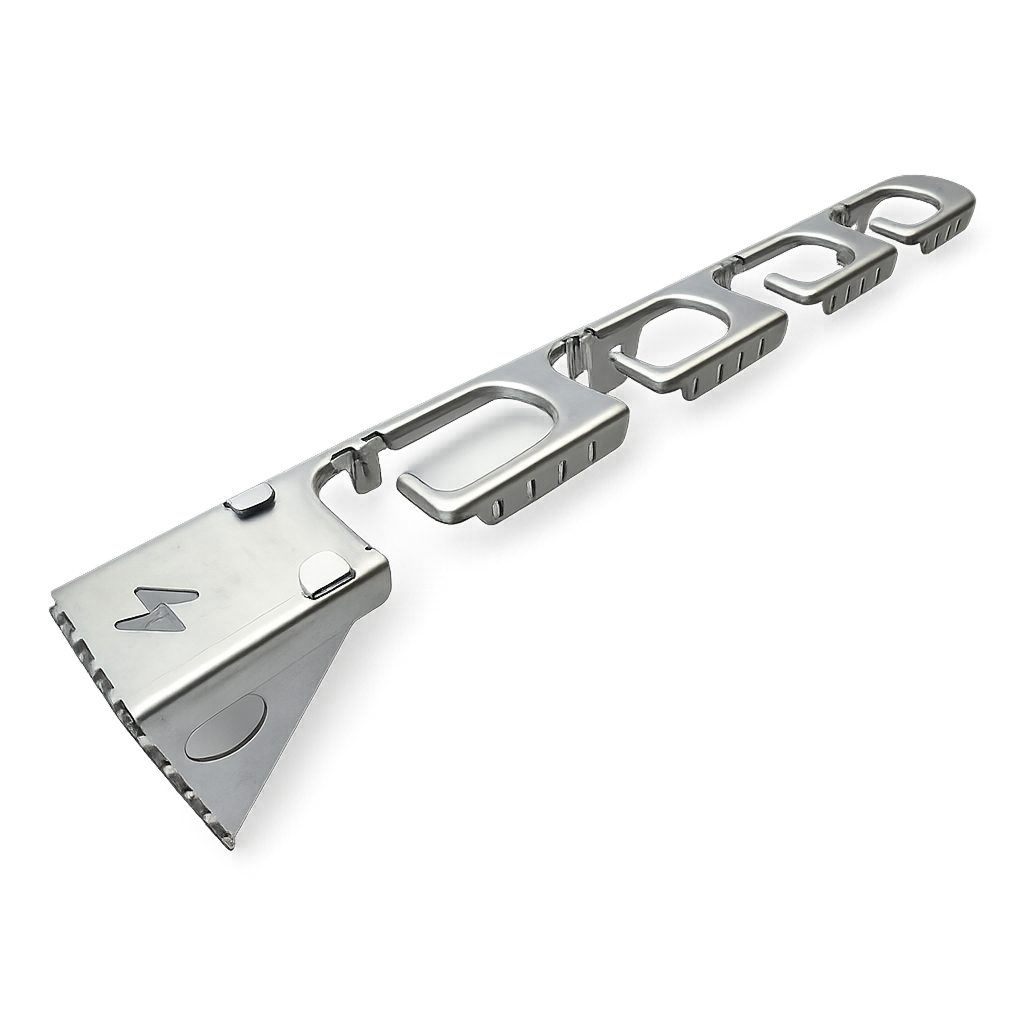

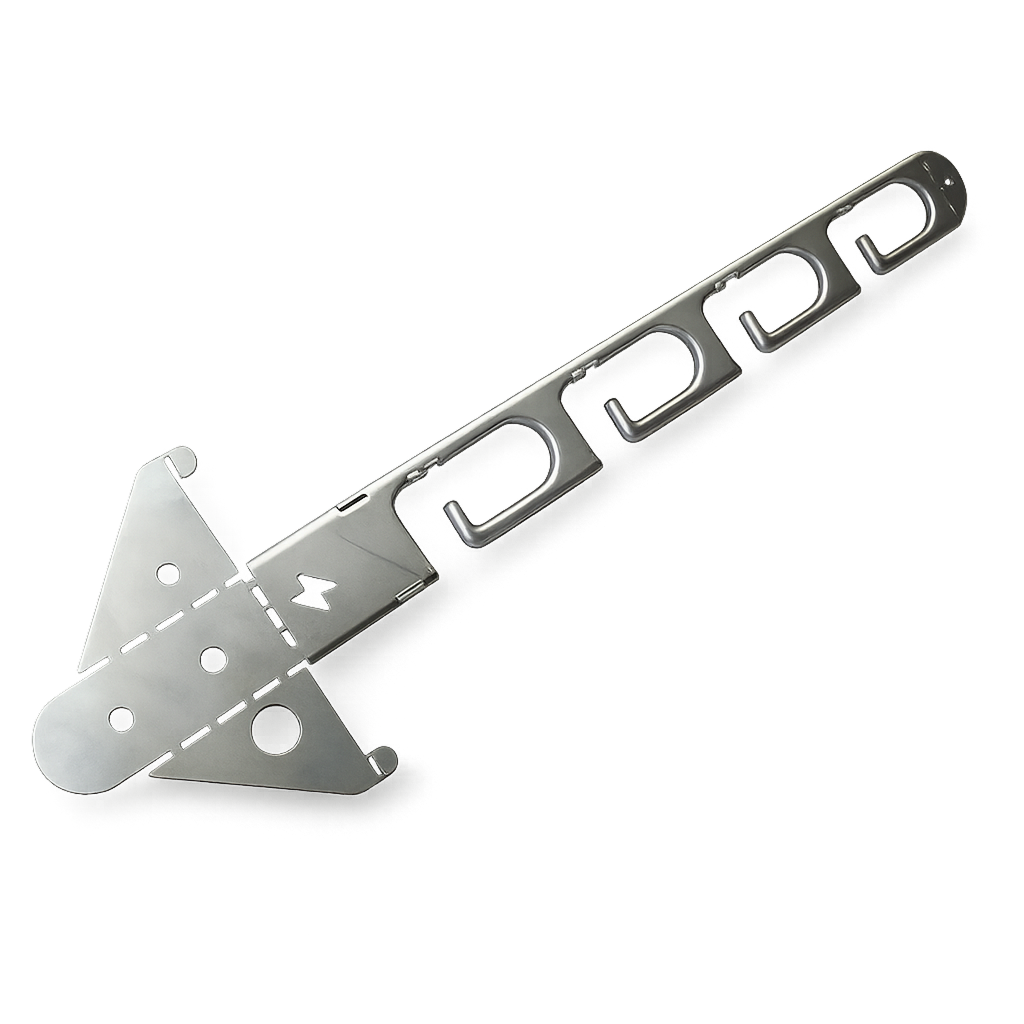

CB15-04 is ideal for supporting larger cable volumes across ceilings, walls and risers. Fire tested to BS EN 50200 and load tested to achieve 18kg SWL per aperture, it provides a fast and flexible alternative to traditional cable clipping methods while maintaining safe and secure cable containment.
CB15-04
CB15-04
CB15-04
CB15-04
CB15-04
CB15-04
CB15-04
CB15-04
CB15-04
CB15-04
CB15-04
CB15-04

CB15-04

£3.29
Quantity

Product description

  • Cableboss CB15-04 is a pre-formed metal bracket that enables the easy positioning and running of multiple cables in ceiling voids and walls.
  • CB15-04  can be fixed vertically or horizontally to any substrate. The four cable aperture provides simple and consistent cable separation, while delivering an effective containment system.
  • Use the pre drilled 6mm holes to fix with screws or simply nail gun it in!
  • When running cables simple fix bracket to substrate, ‘drop-in’ or ‘pull-in’ the cables utilising the unique cable gate design. Once the aperture is full, pull down the ‘cable gate’ to retain the cables within the aperture.
  • Fire tested to meet 120min duration to BSEN50200 standards – INSERT Picture ICON
  • Load tested achieving  18kg SWL per aperture based on 3:1 ratio*

How to install CB15-04

  1. Fix by screwing or nailing (fixings not provided)

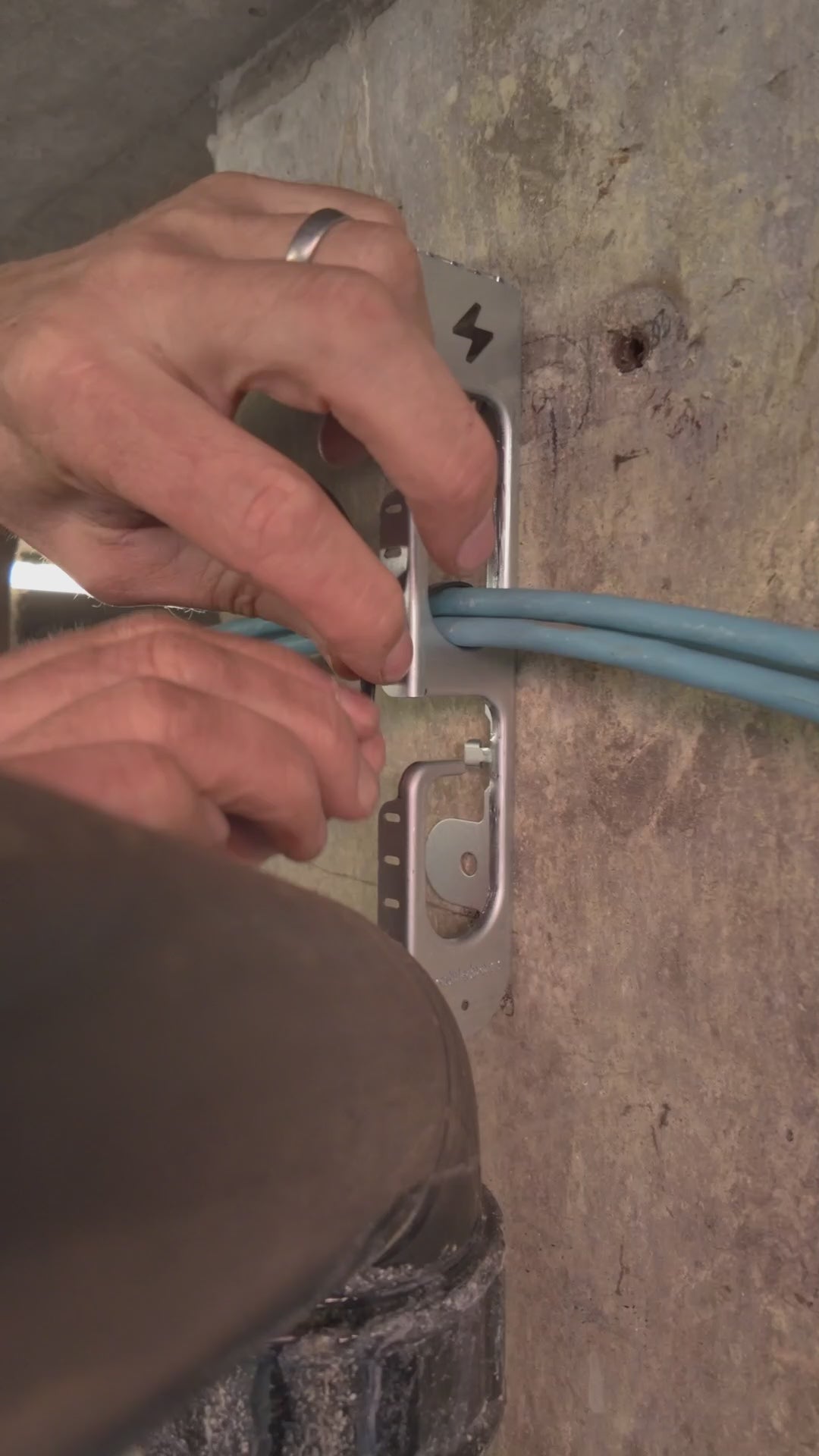

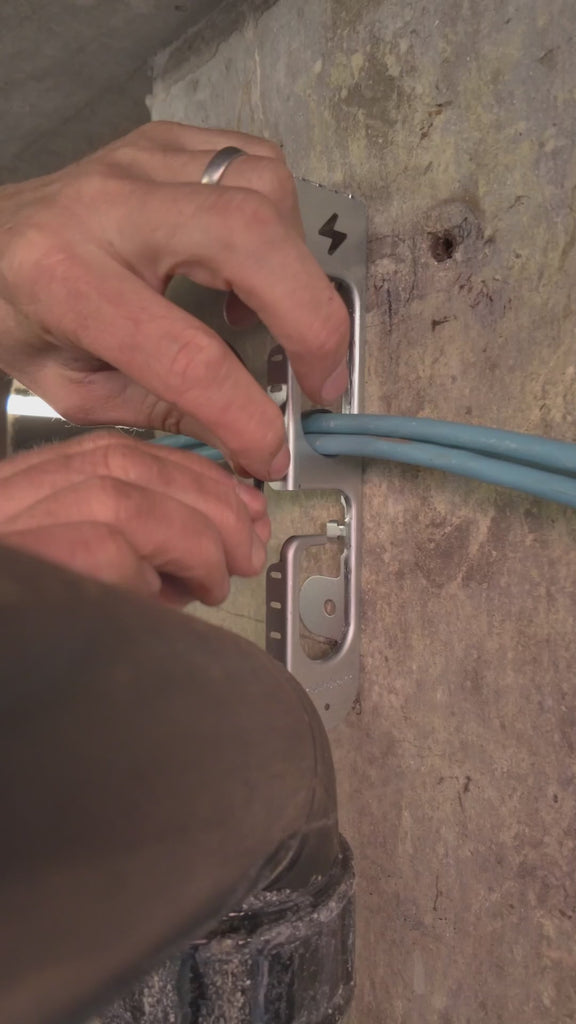

  2. Pull cable in or load them via “cable gates”



CB15-04 can be used in a wide variety of commercial applications for running and positioning cables, such as apartments, hotels, shops, offices and factories.

What the purpose of CB15-04?

Cableboss metal containment brackets or “metal clips” are designed for commercial buildings where the IET 18th Edition Wiring Regulations require all cables to be fixed with metal fixings, as plastic is no longer acceptable.

Is CB15-04 Fire Tested?

The IET 18th Edition states that the only method used for fixing wiring in entry and exit routes should be “suitable metal fixings’  because metal has a much higher melting point than plastic and metal will therefore guard again premature collapse.



CB15-04 has extensively tested all of its metal containment brackets to ensure that meet the very highest standard. All brackets meet 120min duration to BSEN50200 standards

Is CB15-04 load tested?

Yes – CB15-04 has been tested and achieves 18kg SWL per aperture based on 3:1 ratio*



*Load test results reflect self certified laboratory conditions and do not guarantee field performance.

What size cables can the brackets take?

15mm cable gate slot  - 25mm h x 40mm cable aperture

Can I fix the brackets with a nail gun and screws?

Yes, all brackets are designed to work with your preferred nail gun (such as the Pulsa Spit 27E). Cableboss containment brackets feature two fixing areas on the fixing tabs. A pre drilled 6mm hole designed for screws. Also, a space on each tab allows for nailing directly through the tab and securing the substrate behind.

Can Cableboss CB15-04 be fitted in multiple ways?

CB15-04 can be fitted horizontally and vertically to a ceiling or wall. Depending on the purpose and the depth of the void will determine that ideal position for your purpose.

What are the Cable Gates for on CB15-04?

We know that pulling cables can sometime be the quickest method of installing in long runs, however we also know that some cables just don’t want to be pulled and can snag and snatch.

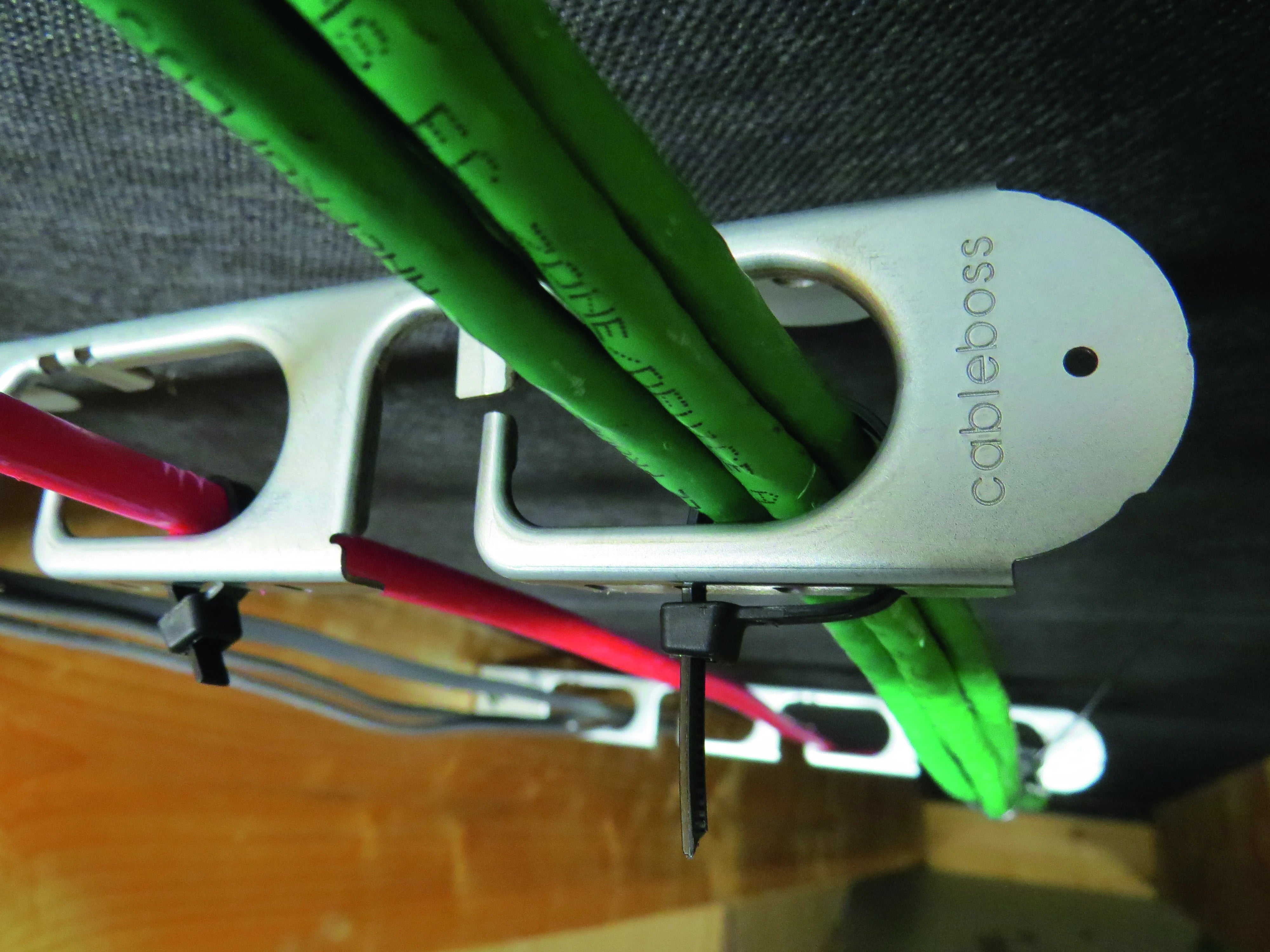

CB15-04 features a ‘cable gate slot’ and open ‘cable gate’. This means that you can easily pull multiple cables into the aperture, but additionally it’s possible “place” cables via the cable gate slot into the aperture. Once the cables are installed, simple pull down the “cable gate” to secure the cables in the aperture. The Cableboss “cable slot and gate” will dramatically speed up install when using multiple brackets on a long run.

Why are  CB15-01 and CB15-02 / 04 different sizes?

CB15 -01 is designed to be used for fitting and positioning single cables where space is limited. Fixed vertically it will project 90mm from the substrate or horizontally 35mm. Great for installing FP200 cables.


CB15-02 / CB15–04 is designed for fitting multiple cables and provides easy cable separation. At 315mm (12.5 inches) long it will fit vertically in most apartment or office ceiling voids. If space is limited CB15-04 can be fixed horizontally.

Can you use Cableboss metal bracket as “approved”

containment?

CB15-04 is designed to provide a simple and effective solution for cable containment. This product supports routed cables and aims to dramatically speed up cable containment install, compared to other containment systems. All Cableboss metal cable support brackets are fire tested to 120mins and approved by electrical specifiers.

Can I use the Cableboss CB15-04 bracket again?

Yes, providing the brackets are accessible. For example if,  CB15-04 was used for site set-up to temporary fix cables around walls, providing screws were used, it would certainly be possible to unscrew, remove and use again.

Technical specifications

  • Meets 120min fire time in accordance with BSEN50200
  • Achieves 18kg SWL per aperture based on 3:1 ratio*
  • Meets recommendation for Fire Rated Cable Fixings BS7671 Amendment 3
  • In compliance with cable support requirements of BS5839-1, BS 5839-8 and BS5266-1
  • Complies with IET Wiring Regulations 521.10.202.
  • Compliant with requirements of BSEN 8519
  • The 18th Edition states that it is no longer acceptable for plastic clips to be the only method used for fixing wiring in entry and exit routes. Instead, suitable ‘metal fixings’ should be used.
  • In compliance with cable support requirements of BS5839-1, BS 5839-8 and BS5266-1

*Load test results reflect self certified laboratory conditions and do not guarantee field performance.

Professional Cable Containment

Built for Safety & Performance.

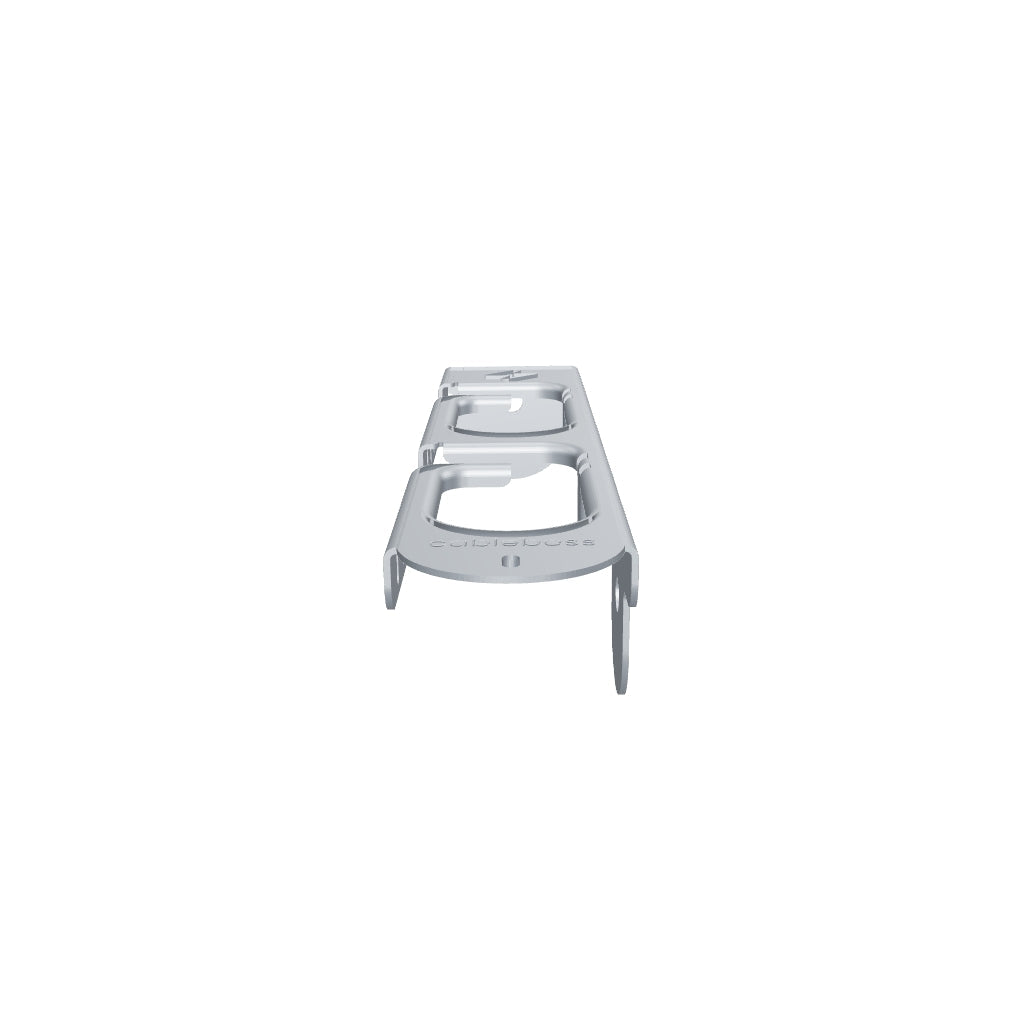

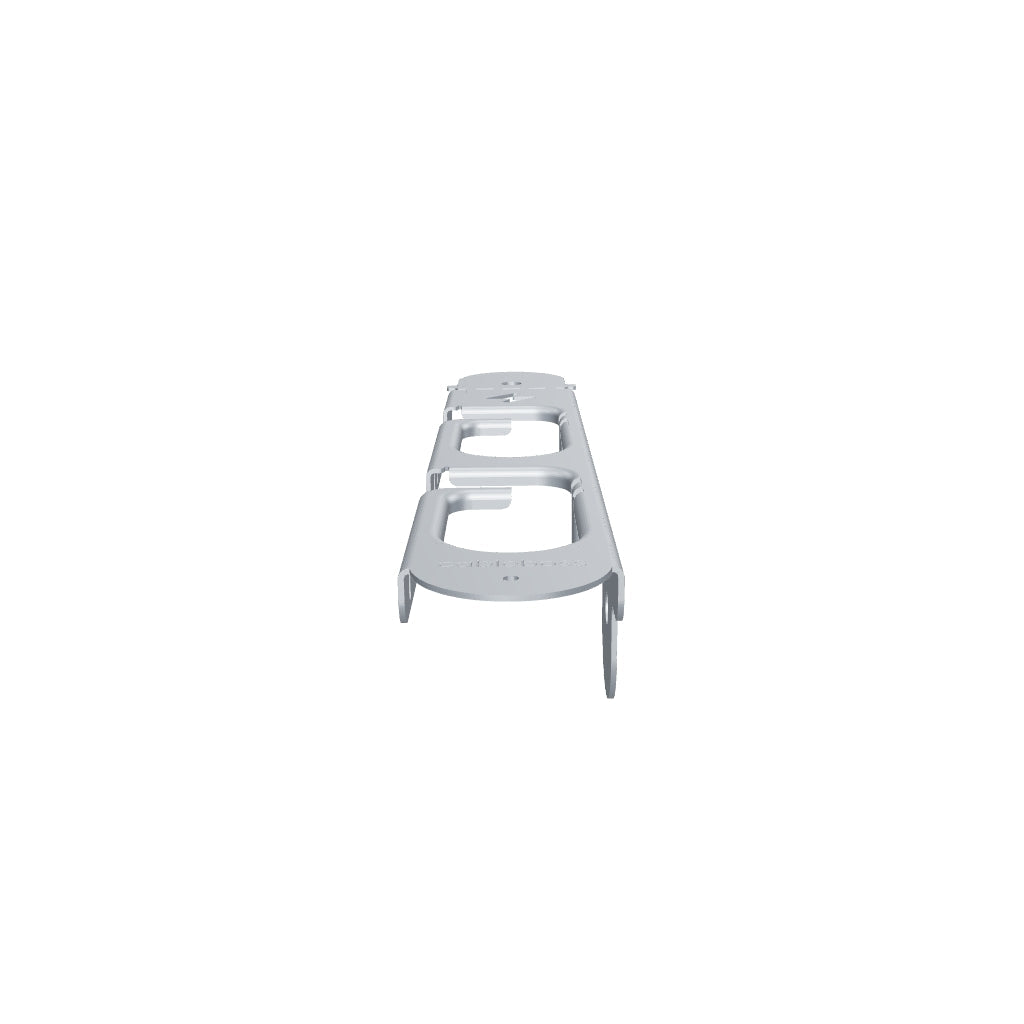

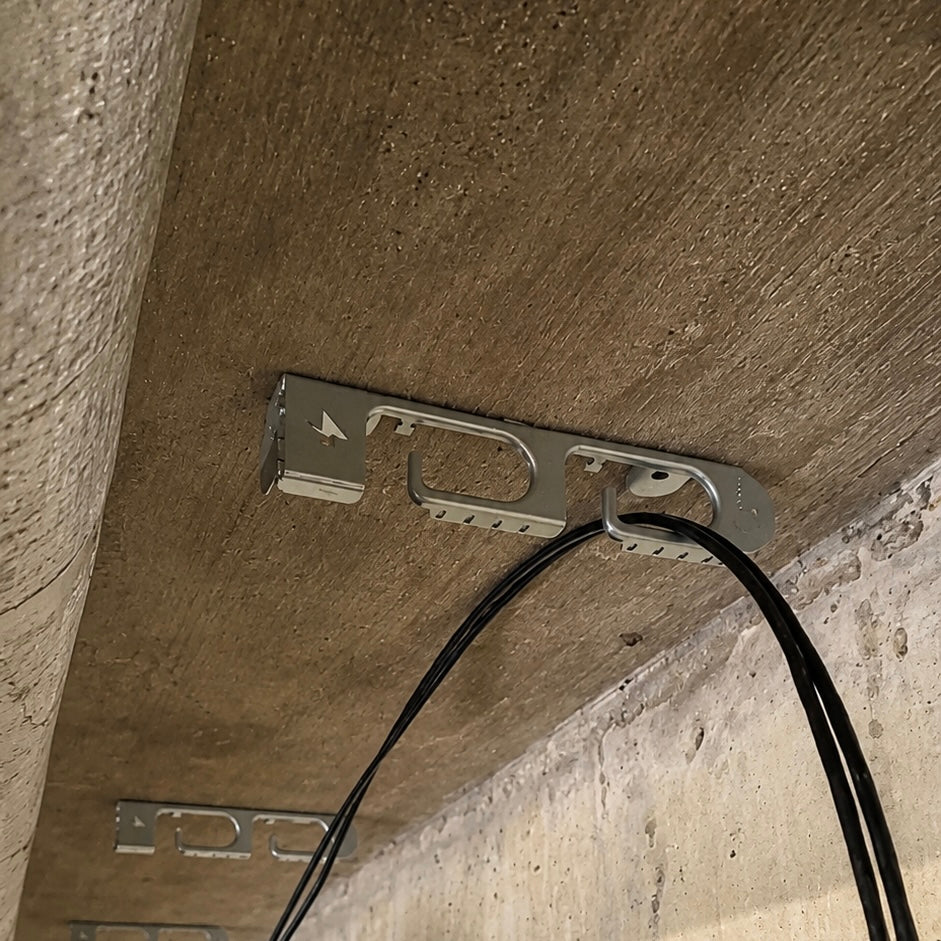

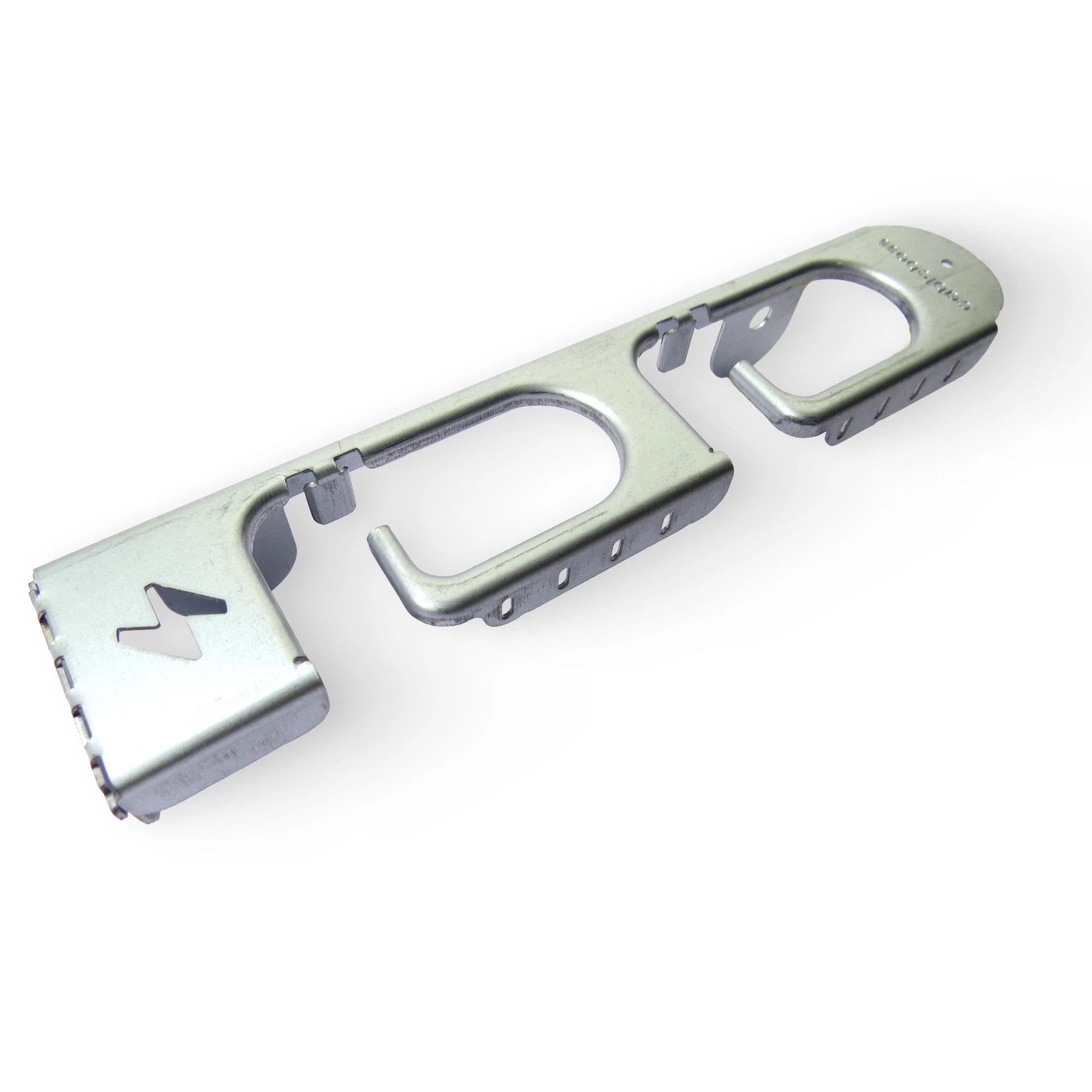

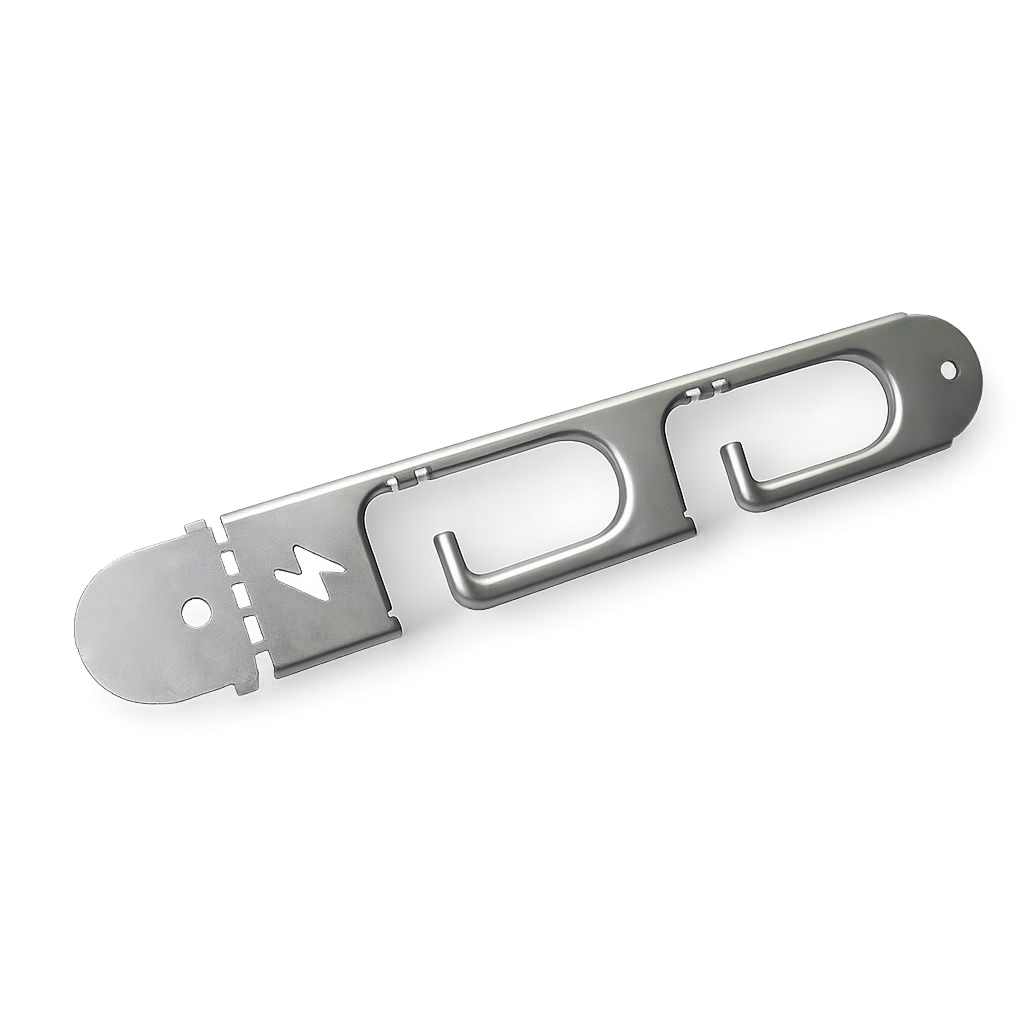

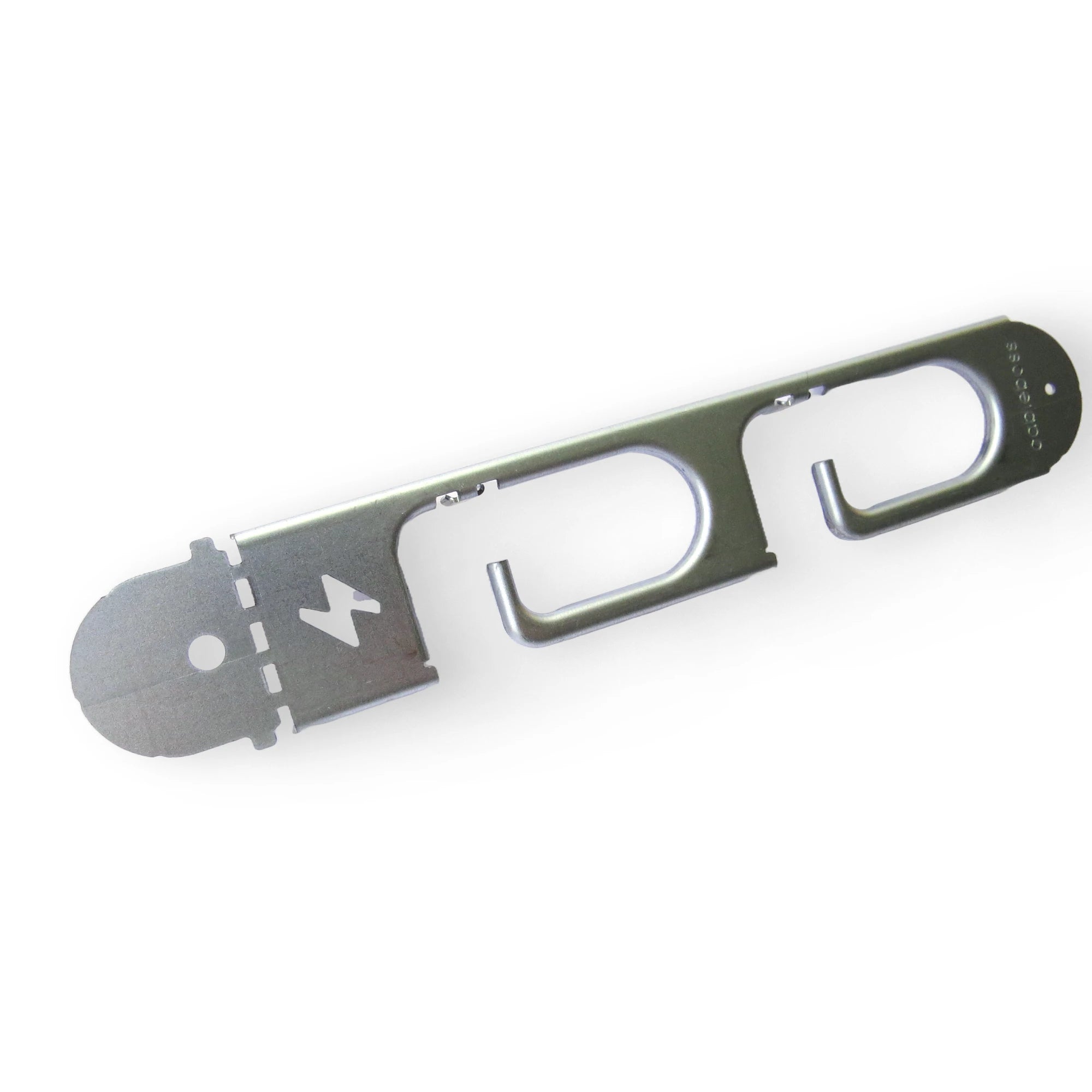

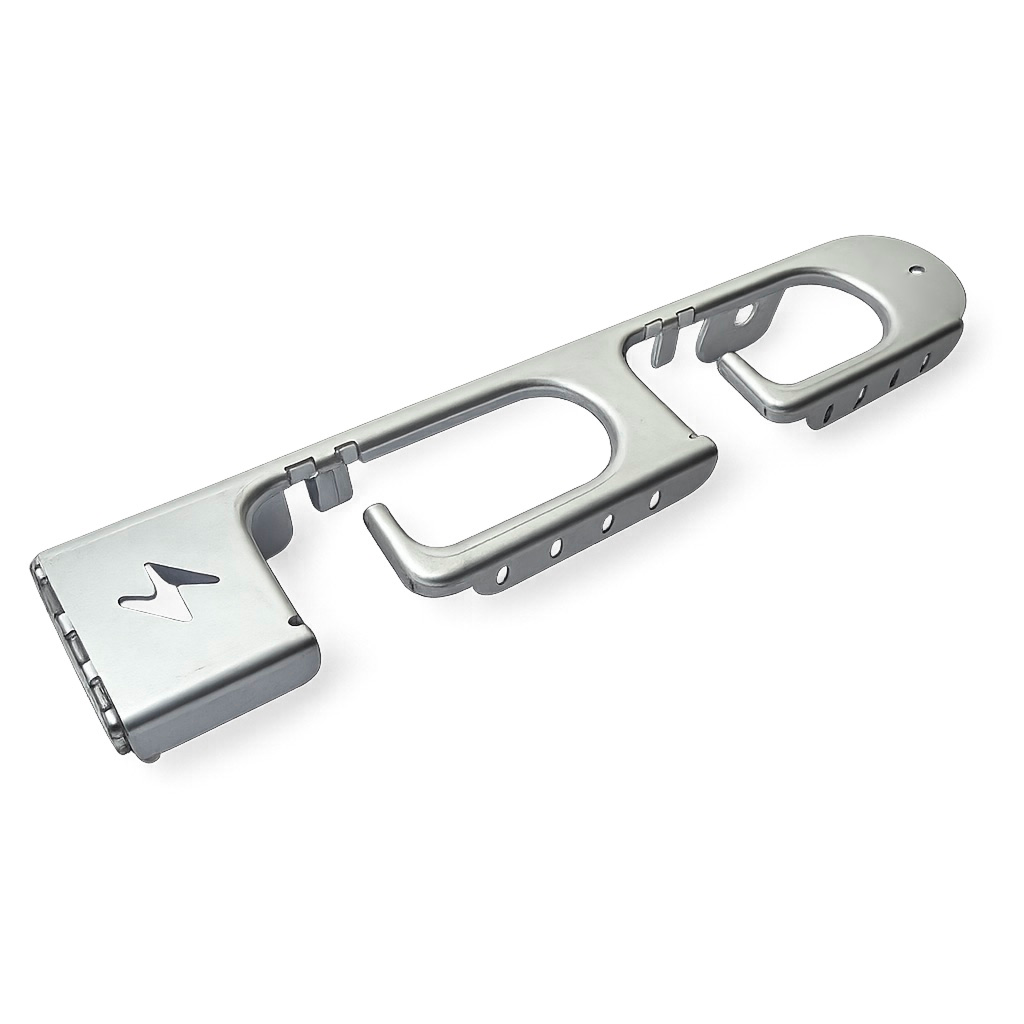

CB15-02 is designed to provide organised cable routing with clear cable separation, helping reduce heat build-up and frequency interference. Fire tested to 120 minutes and load tested to 18kg SWL per aperture, it offers a professional, compliant cable support solution for commercial and industrial installations.
CB15-02
CB15-02
CB15-02
CB15-02
CB15-02
CB15-02
CB15-02

CB15-02

£1.89
Quantity

Product description

  • Cableboss CB15-02 is a pre-formed metal bracket that enables the easy positioning and running of multiple cables in ceiling voids and walls.
  • CB15-02  can be fixed vertically or horizontally to any substrate. The four cable aperture provides simple and consistent cable separation, while delivering an effective containment system.
  • Use the pre drilled 6mm holes to fix with screws or simply nail gun it in!
  • When running cables simple fix bracket to substrate, ‘drop-in’ or ‘pull-in’ the cables utilising the unique cable gate design. Once the aperture is full, pull down the ‘cable gate’ to retain the cables within the aperture.
  • Fire tested to meet 120min duration to BSEN50200 standards – INSERT Picture ICON
  • Load tested achieving  18kg SWL per aperture based on 3:1 ratio*

How to install CB15-02?

  1. Fix by screwing or nailing (fixings not provided)
  2. Pull cable in or load them via “cable gates”



CB15-02 can be used in a wide variety of commercial applications for running and positioning cables, such as apartments, hotels, shops, offices and factories.

What the purpose of CB15-02?

Cableboss metal containment brackets or “metal clips” are designed for commercial buildings where the IET 18th Edition Wiring Regulations require all cables to be fixed with metal fixings, as plastic is no longer acceptable.

Is CB15-02 Fire Tested?

The IET 18th Edition states that the only method used for fixing wiring in entry and exit routes should be “suitable metal fixings’  because metal has a much higher melting point than plastic and metal will therefore guard again premature collapse.



Cableboss has extensively tested all of its metal containment brackets to ensure that meet the very highest standard. All brackets meet 120min duration to BSEN50200 standards

Is CB15-02 load tested?

Yes – All metal bracket have been tested and achieves 18kg SWL per aperture based on 3:1 ratio*



*Load test results reflect self certified laboratory conditions and do not guarantee field performance.

What size cables with the brackets take?

CB15–02 - 15mm cable gate slot - 25mm h x 40mm cable aperture

Can I fix the brackets with a nail gun and screws?

Yes, all brackets are designed to work with your preferred nail gun (such as the Pulsa Spit 27E). Cableboss containment brackets feature two fixing areas on the fixing tabs. A pre drilled 6mm hole designed for screws. Also, a space on each tab allows for nailing directly through the tab and securing the substrate behind.

Can Cableboss CB15-02 be fitted in multiple ways?

BC15-02 can be fitted horizontally and vertically to a ceiling or wall. Depending on the purpose and the depth of the void will determine that ideal position for your purpose.

What are the Cable Gates CB15-02 / CB15-04?

We know that pulling cables can sometime be the quickest method of installing in long runs, however we also know that some cables just don’t want to be pulled and can snag and snatch.



CB15-02 features a ‘cable gate slot’ and open ‘cable gate’. This means that you can easily pull multiple cables into the aperture, but additionally it’s possible “place” cables via the cable gate slot into the aperture. Once the cables are installed, simple pull down the “cable gate” to secure the cables in the aperture.  The Cableboss “cable slot and gate” will dramatically speed up install when using multiple brackets on a long run.

Why are  CB15-01 and CB15-02 / 04 different sizes?

CB15-01 is designed to be used for fitting and positioning single cables where space is limited. Fixed vertically it will project 90mm from the substrate or horizontally 35mm. Great for installing FP200 cables.



CB15-02 / CB15–04 is designed for fitting multiple cables and provides easy cable separation. At 315mm (12.5 inches) long it will fit vertically in most apartment or office ceiling voids. If space is limited CB15-04 can be fixed horizontally.

Can you use Cableboss metal bracket as “approved”

containment?

CB15-02 is designed to provide a simple and effective solution for cable containment. CB15-02 supports routed cables and aims to dramatically speed up cable containment install, compared to other containment systems. All Cableboss metal cable support brackets are fire tested to 120mins and approved by electrical specifiers.

Can I use the Cableboss CB15-02 bracket again?

Yes, providing the brackets are accessible. For example if,  CB15-02 was used for site set-up to temporary fix cables around walls, providing screws were used, it would certainly be possible to unscrew, remove and use again.

Technical specifications

  • Meets 120min fire time in accordance with BSEN50200
  • Achieves 18kg SWL per aperture based on 3:1 ratio*
  • Meets recommendation for Fire Rated Cable Fixings BS7671 Amendment 3
  • In compliance with cable support requirements of BS5839-1, BS 5839-8 and BS5266-1
  • Complies with IET Wiring Regulations 521.10.202.
  • Compliant with requirements of BSEN 8519
  • The 18th Edition states that it is no longer acceptable for plastic clips to be the only method used for fixing wiring in entry and exit routes. Instead, suitable ‘metal fixings’ should be used.
  • In compliance with cable support requirements of BS5839-1, BS 5839-8 and BS5266-1

*Load test results reflect self certified laboratory conditions and do not guarantee field performance.

Compact Cable Support

Fast Installation. Reliable Performance.

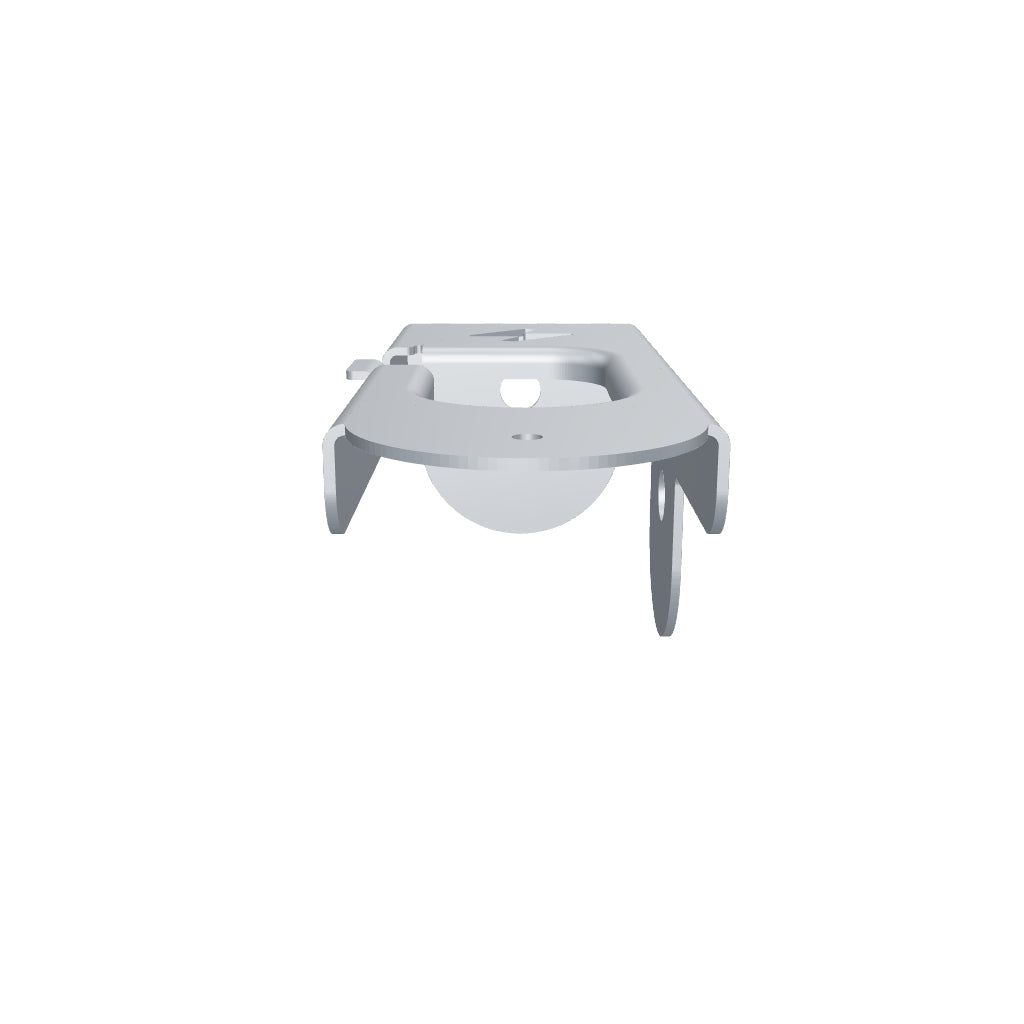

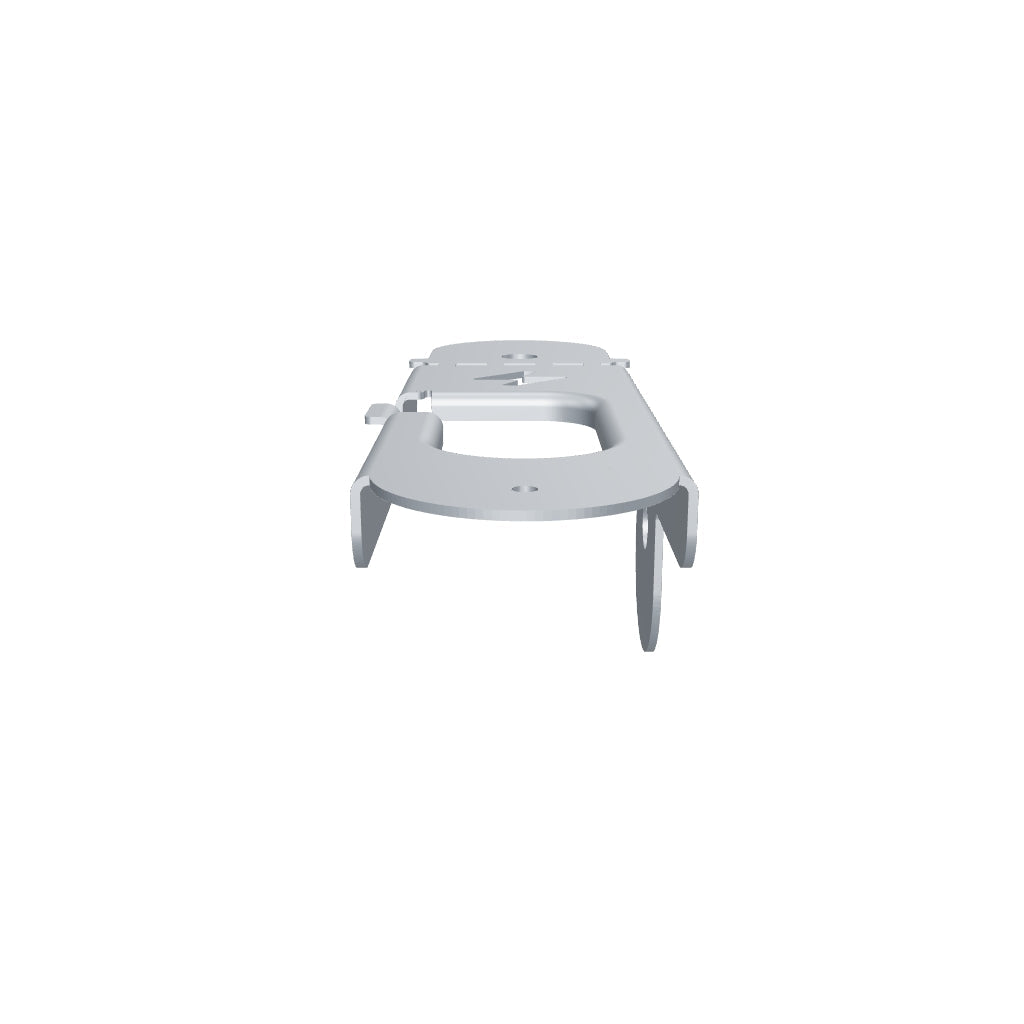

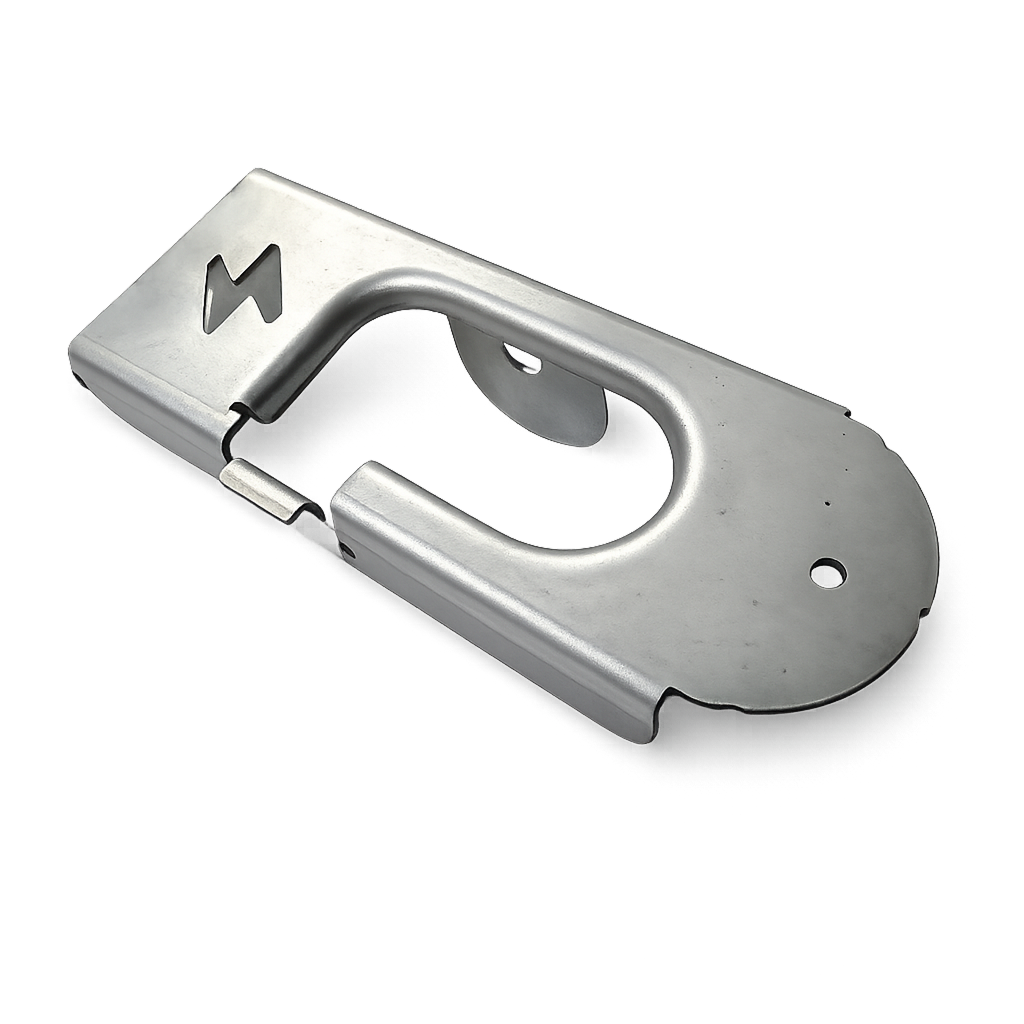

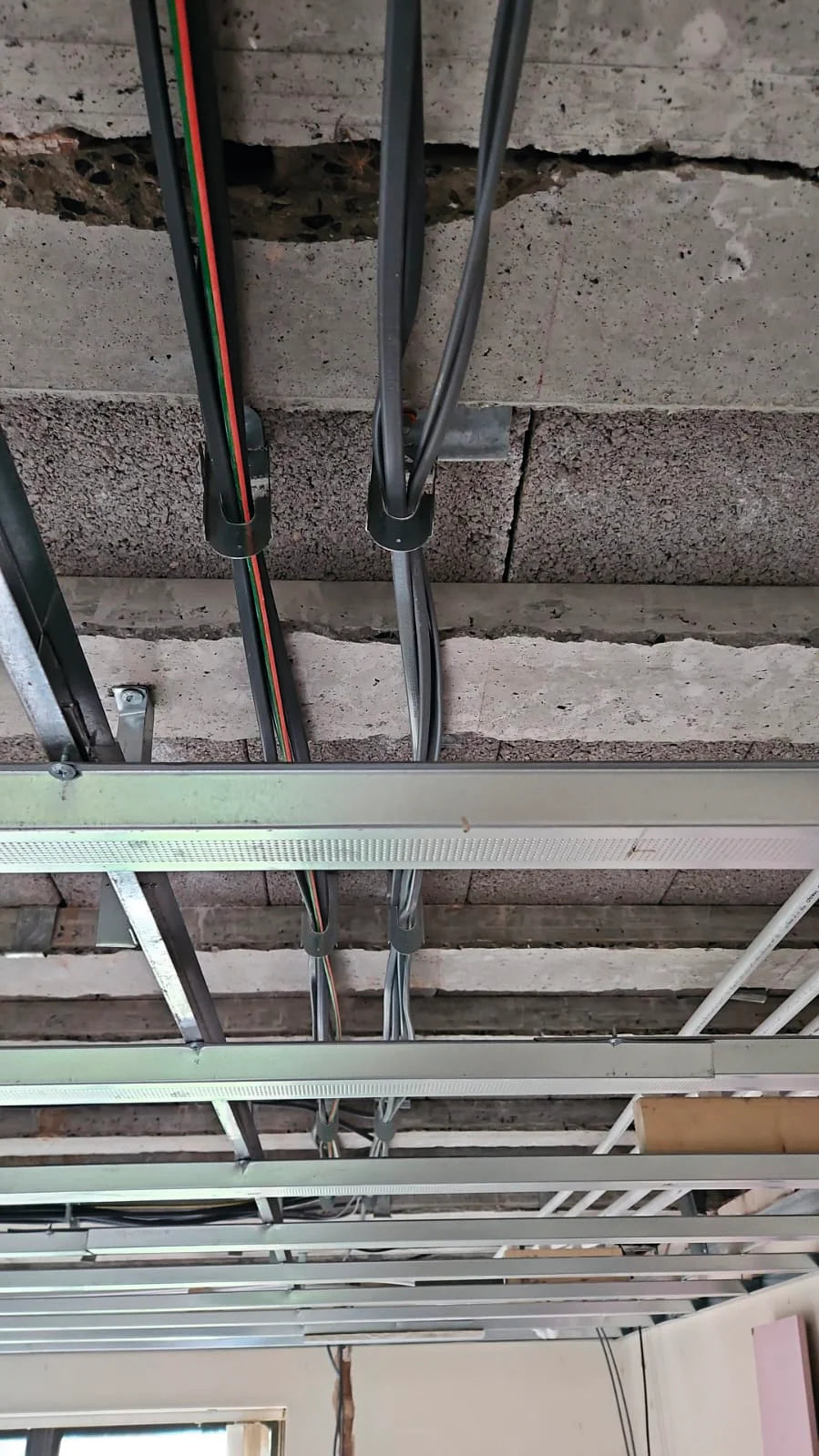

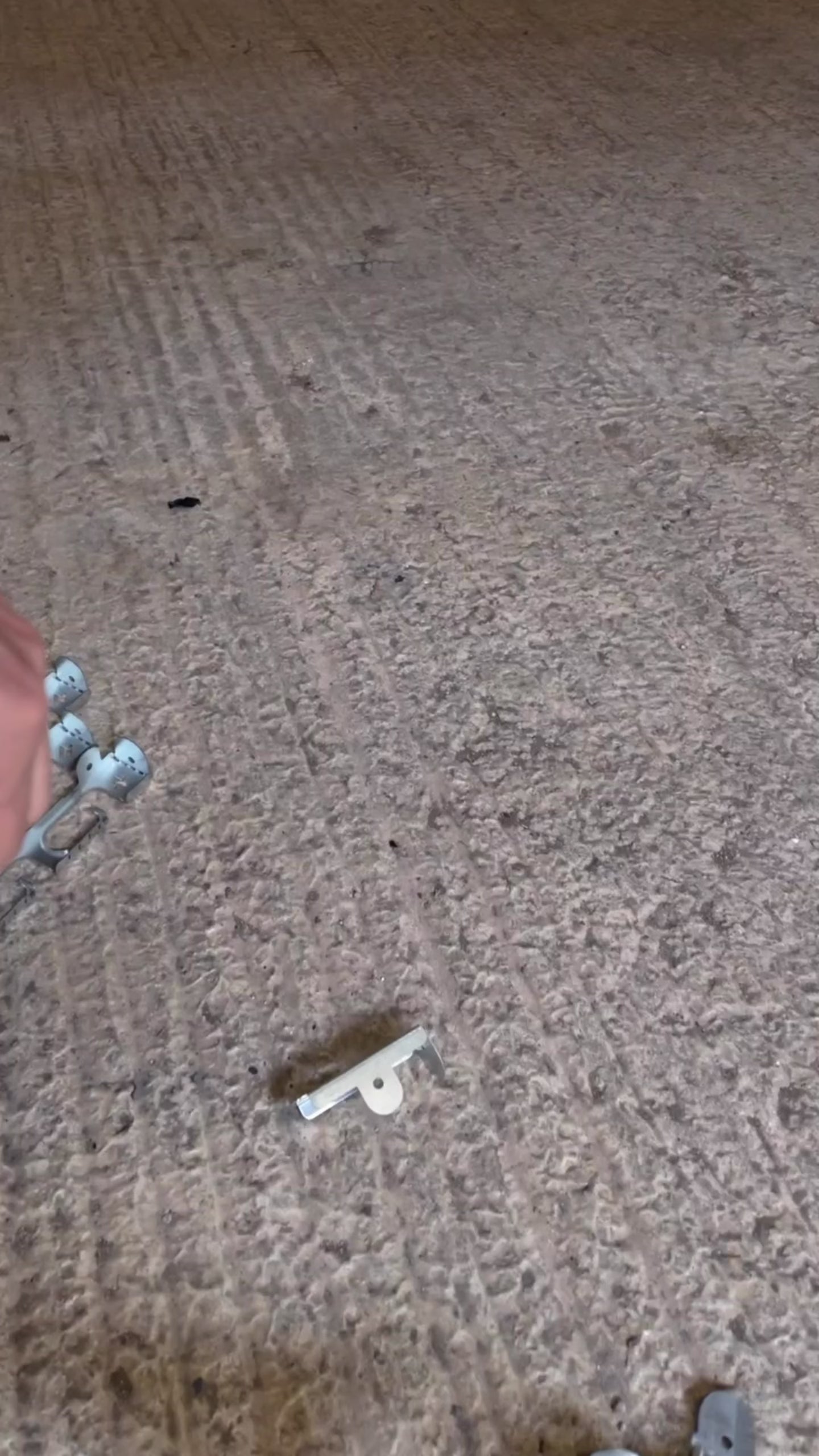

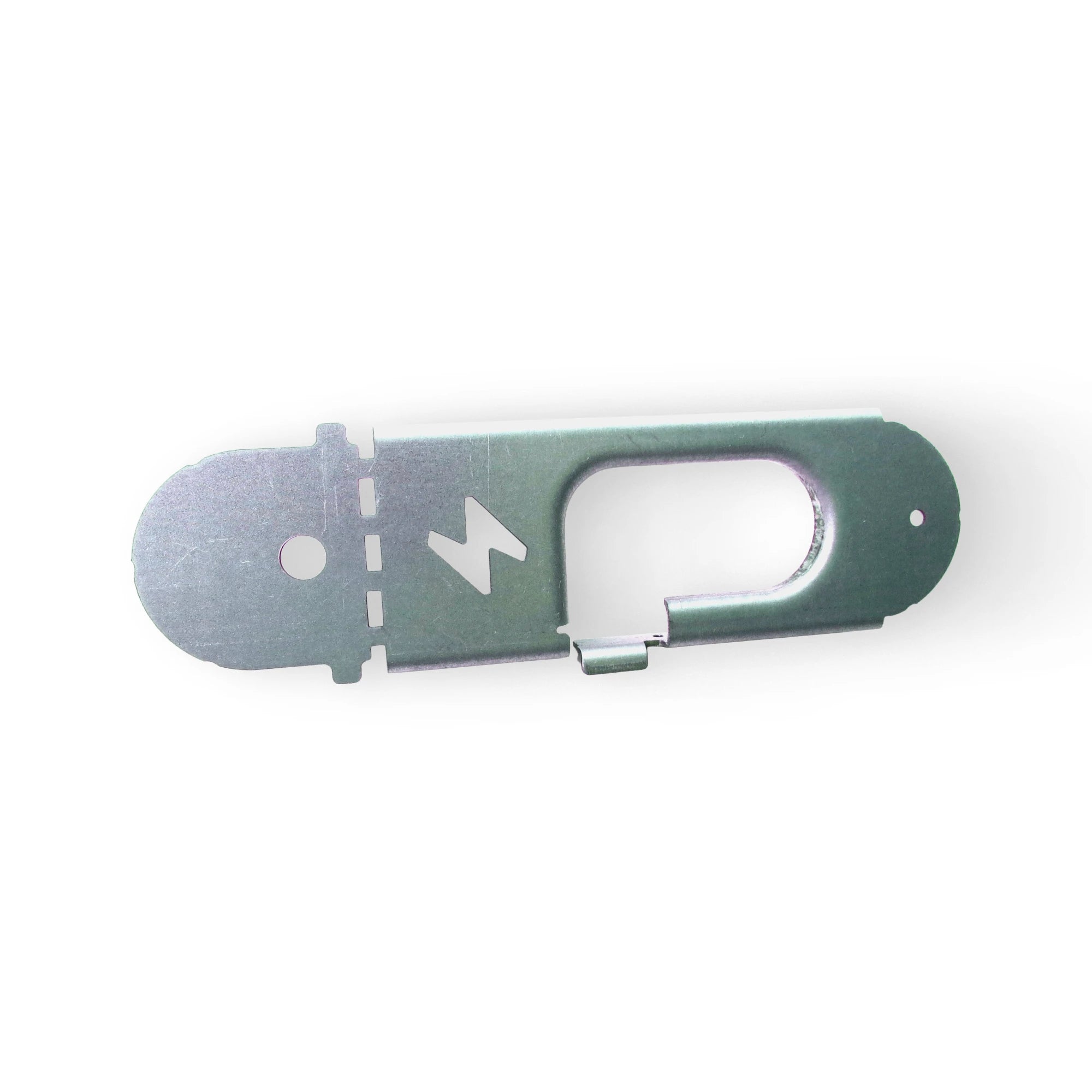

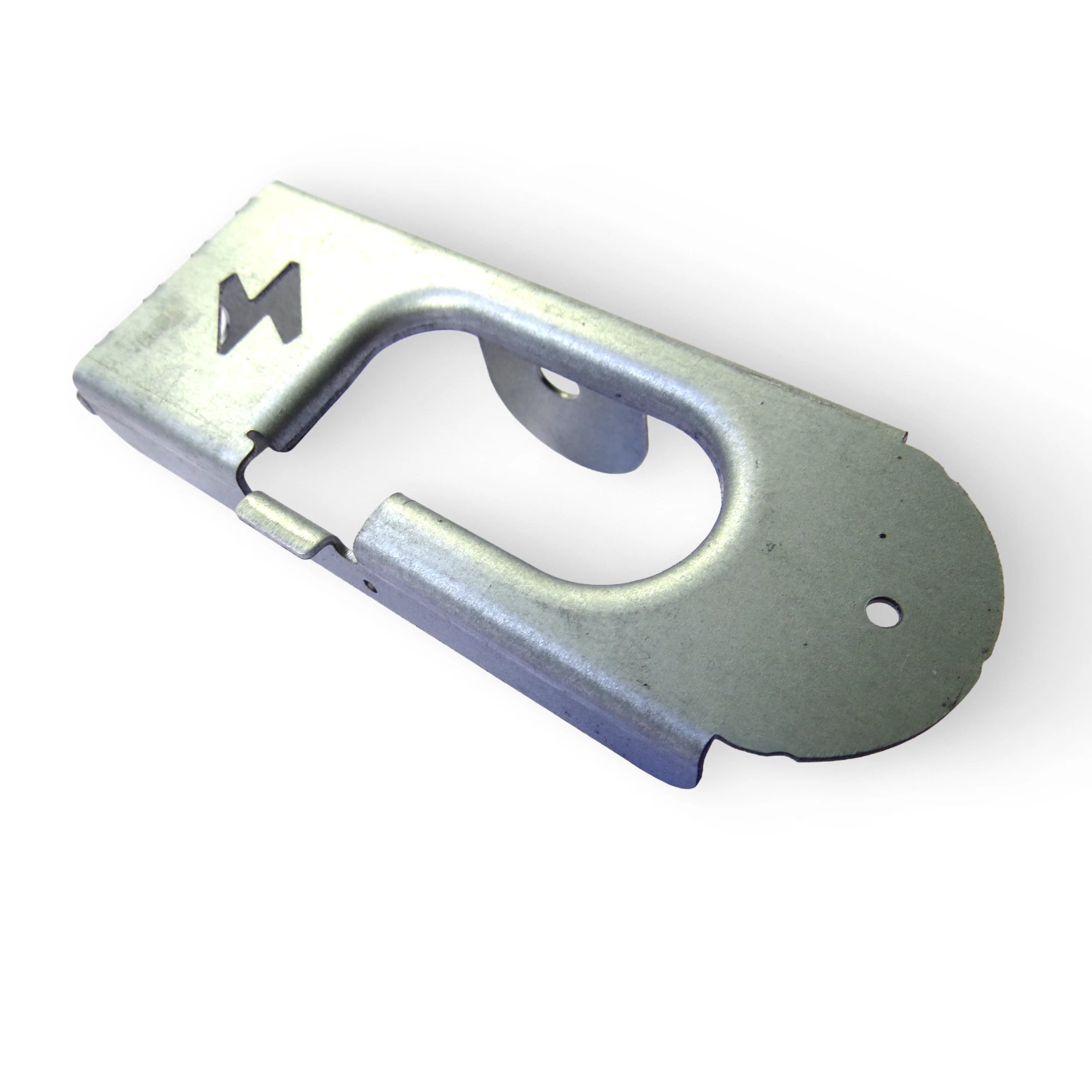

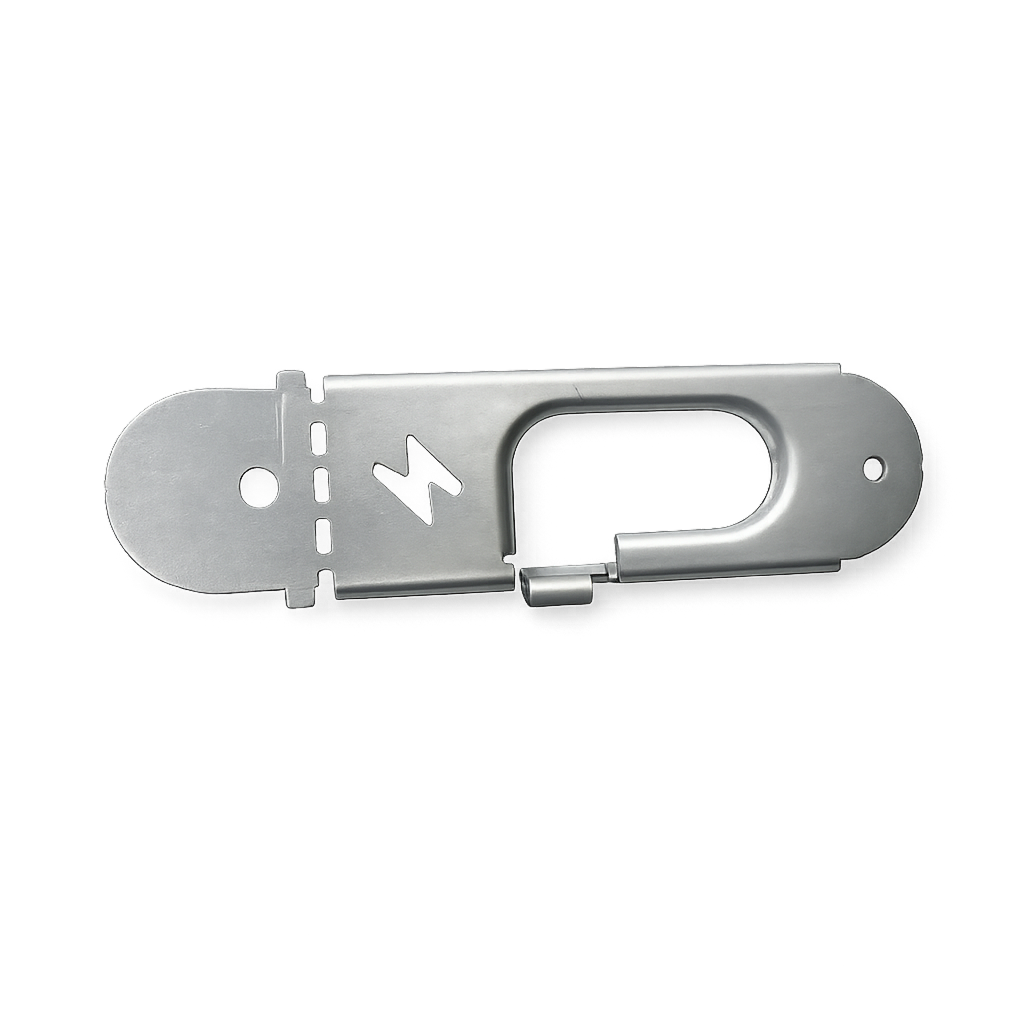

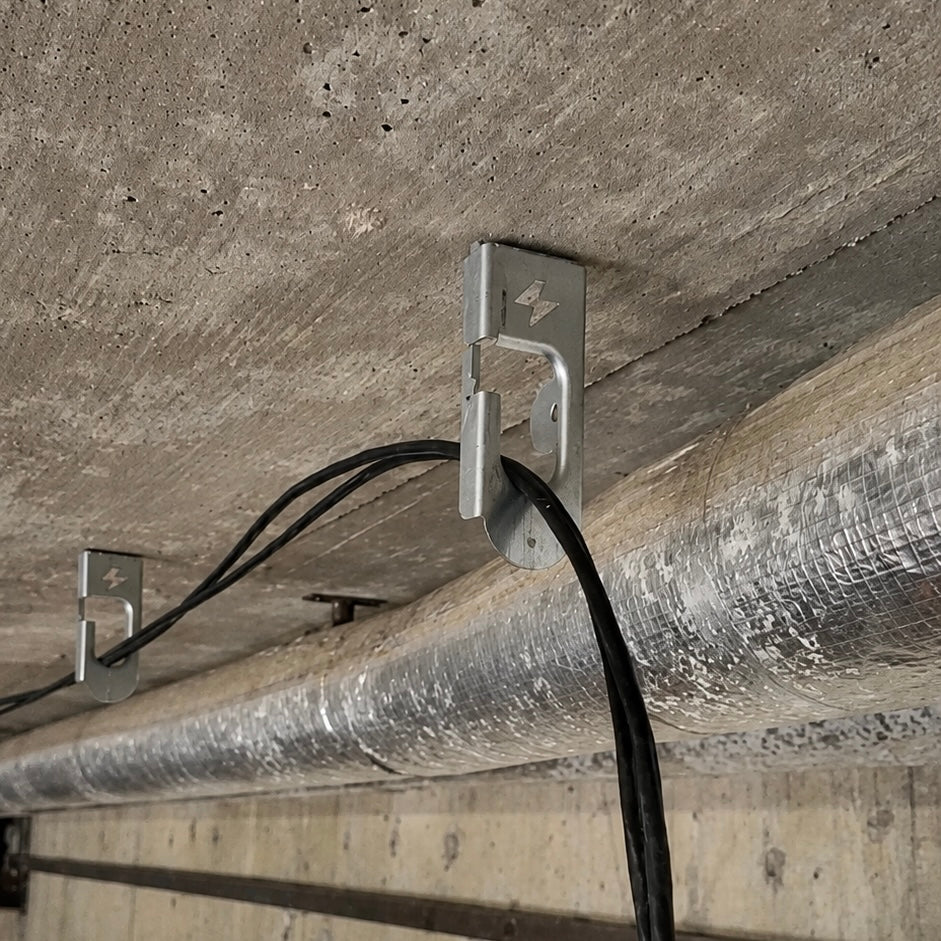

CB15-01 provides a compact and efficient cable support solution for smaller cable runs and confined spaces. Fire tested to 120 minutes in accordance with BS EN 50200 and load tested to achieve 18kg SWL per aperture, it delivers secure cable containment with the flexibility to add or remove cables quickly using the patented cable gate.
CB15-01
CB15-01
CB15-01
CB15-01

CB15-01

£1.09
Quantity

Product description

  • Cableboss CB15-01 is a pre-formed metal bracket that enables the easy positioning and running of multiple cables in ceiling voids and walls.
  • CB15-01 can be fixed vertically or horizontally to any substrate. The four cable aperture provides simple and consistent cable separation, while delivering an effective containment system.
  • Use the pre drilled 6mm holes to fix with screws or simply nail gun it in!
  • When running cables simple fix bracket to substrate, ‘drop-in’ or ‘pull-in’ the cables utilising the unique cable gate design. Once the aperture is full, pull down the ‘cable gate’ to retain the cables within the aperture.
  • Fire tested to meet 120min duration to BSEN50200 standards – INSERT Picture ICON
  • Load tested achieving  18kg SWL per aperture based on 3:1 ratio*

How to install CB15-01

  1. Fix by screwing or nailing (fixings not provided)
  2. Pull cable in or load them via “cable gates”



CB15-01 can be used in a wide variety of commercial applications for running and positioning cables, such as apartments, hotels, shops, offices and factories.

What the purpose of CB15-01?

Cableboss metal containment brackets or “metal clips” are designed for commercial buildings where the IET 18th Edition Wiring Regulations require all cables to be fixed with metal fixings, as plastic is no longer acceptable.

Is CB15-01 Fire Tested?

The IET 18th Edition states that the only method used for fixing wiring in entry and exit routes should be “suitable metal fixings’  because metal has a much higher melting point than plastic and metal will therefore guard again premature collapse.



Cableboss has extensively tested all of its metal containment brackets to ensure that meet the very highest standard. All brackets meet 120min duration to BSEN50200 standards

Is CB15-01 Load Tested?

Yes – All metal bracket have been tested and achieves 18kg SWL per aperture based on 3:1 ratio*


*Load test results reflect self certified laboratory conditions and do not guarantee field performance.

What size cables with the brackets take?

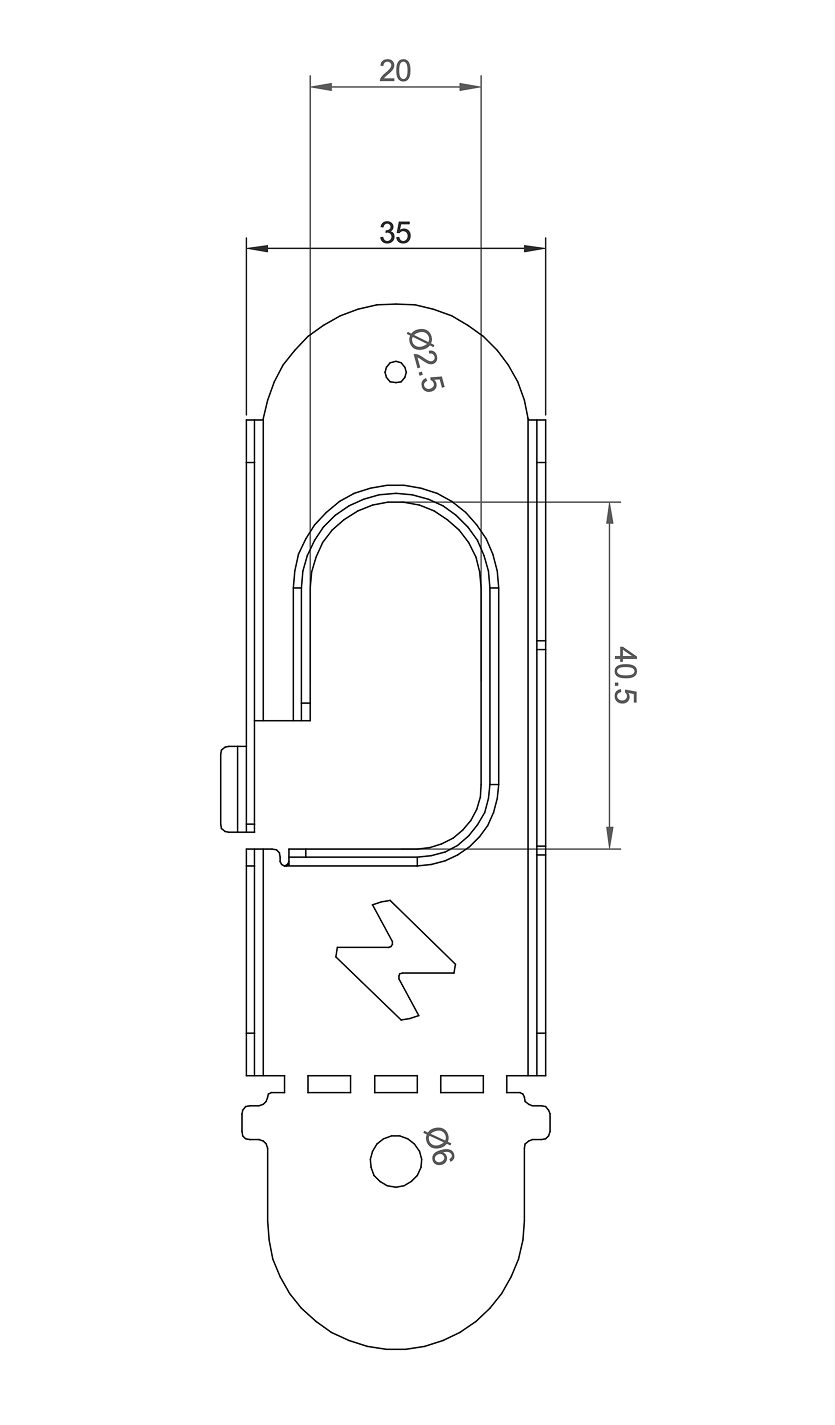

CB15–01  - 15mm cable gate slot - 20mm h x 40mm cable aperture.

Can I fix the brackets with a nail gun and screws?

Yes, all brackets are designed to work with your preferred nail gun (such as the Pulsa Spit 27E). Cableboss containment brackets feature two fixing areas on the fixing tabs. A pre drilled 6mm hole designed for screws. Also, a space on each tab allows for nailing directly through the tab and securing the substrate behind.

Can Cableboss CB15-01 be fitted in multiple ways?

All Cableboss brackets can be fitted horizontally and vertically to a ceiling or wall. Depending on the purpose and the depth of the void will determine that ideal position for your purpose.

What are the Cable Gates for on CB15-01?

We know that pulling cables can sometime be the quickest method of installing in long runs, however we also know that some cables just don’t want to be pulled and can snag and snatch.



CB15-01 feature a pre-closed gate which allows for single cable pulling, but with the added benefit of being able to open or close the gate to add or remove cables. We think that be simply bending open the gate will speed up install and can be quicker that pulling a cable.

Why are  CB15-01 and CB15-02 / 04 different sizes?

CB15 -01 is designed to be used for fitting and positioning single cables where space is limited. Fixed vertically it will project 90mm from the substrate or horizontally 35mm. Great for installing FP200 cables.



CB15-02 / CB15–04 is designed for fitting multiple cables and provides easy cable separation. At 315mm (12.5 inches) long it will fit vertically in most apartment or office ceiling voids. If space is limited CB15-04 can be fixed horizontally.

Can you use Cableboss metal bracket as “approved”

containment?

Cableboss CB15-01, CB15-02 and CB15-04 are designed to provide a simple and effective solution for cable containment. Both products will support the routed cables  and aims to dramatically speed up cable containment install, compared to other containment systems. All Cableboss metal cable support brackets are fire tested to 120mins and approved by electrical specifiers.

Can I use the Cableboss CB15-01 bracket again?

Yes, providing the brackets are accessible. For example if,  CB15-01 was used for site set-up to temporary fix cables around walls, providing screws were used, it would certainly be possible to unscrew, remove and use again.

Technical specifications

  • Meets 120min fire time in accordance with BSEN50200
  • Achieves 18kg SWL per aperture based on 3:1 ratio*
  • Meets recommendation for Fire Rated Cable Fixings BS7671 Amendment 3
  • In compliance with cable support requirements of BS5839-1, BS 5839-8 and BS5266-1
  • Complies with IET Wiring Regulations 521.10.202.
  • Compliant with requirements of BSEN 8519
  • The 18th Edition states that it is no longer acceptable for plastic clips to be the only method used for fixing wiring in entry and exit routes. Instead, suitable ‘metal fixings’ should be used.
  • In compliance with cable support requirements of BS5839-1, BS 5839-8 and BS5266-1

*Load test results reflect self certified laboratory conditions and do not guarantee field performance.
Cableboss plastic cable clip installed in ceiling with cable exiting for tidy containment Cableboss plastic cable clip installed in ceiling with cable exiting for tidy containment Cableboss plastic cable clip installed in ceiling with cable exiting for tidy containment

CB01 our plastic bracket

Cables stay exactly where you left them! “A game changer, especially when the builder uses PIR Insulation” – ideal for accurate cable support and management when joist access is limited.

Learn more
Cableboss plastic cable clip installed in ceiling with cable exiting for tidy containment

Do your cables get moved?

No easy way to secure cables between joists? Struggling with cable management in tight spaces? Cableboss CB01 keeps cables in place, reduces errors, speeds up installation, and minimises ceiling repairs.



CB01 - 5 pcs
CB01 - 5 pcs
CB01 - 5 pcs
CB01 - 5 pcs
CB01 - 5 pcs
CB01 - 5 pcs
CB01 - 5 pcs

CB01 - 5 pcs

£9.00
£11.99

Product code: CB01

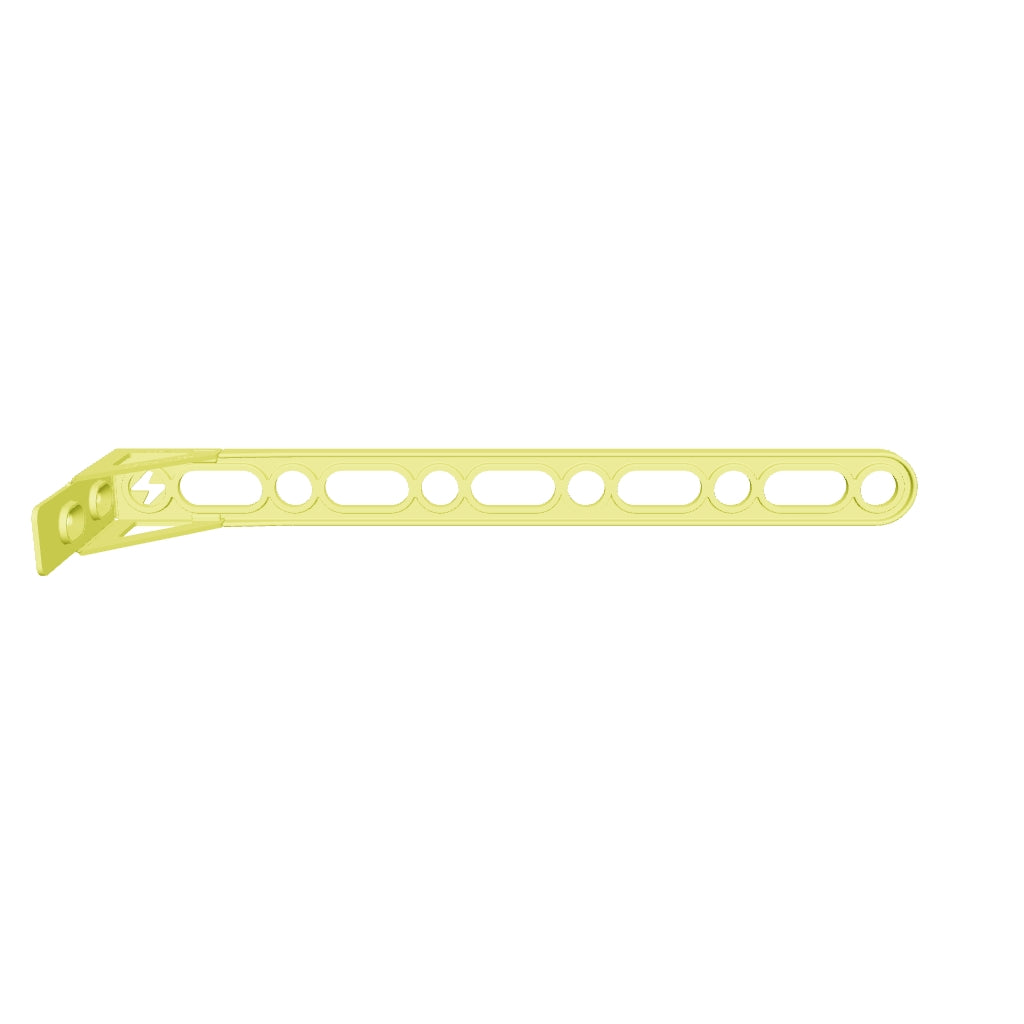

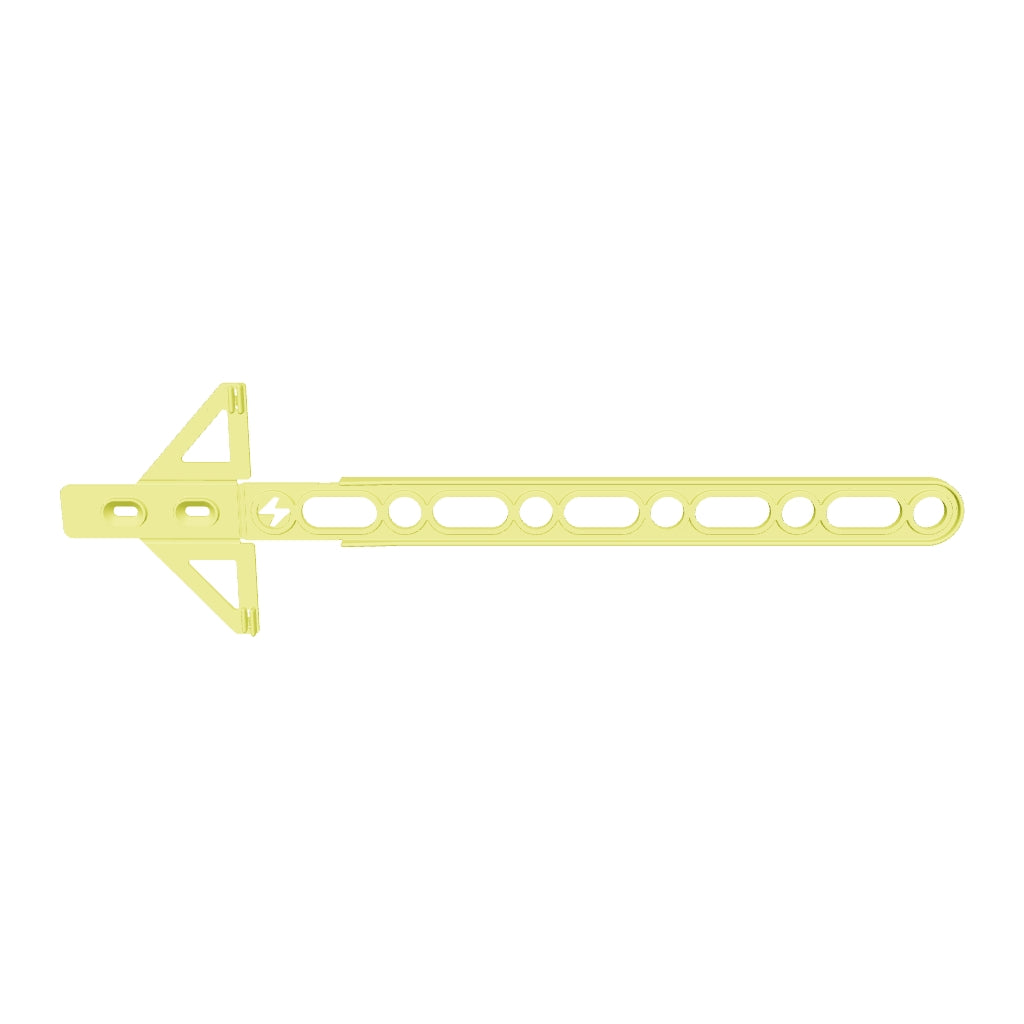

Cableboss is a pre-formed bracket that enables the easy positioning of cables in walls and ceilings. Combined with our FREE mobile app to record locations, your cables will stay exactly where you left them.

5 simple steps to use cableboss:

  1. Clip together
    2. Screw to joist (screws not included)
    3. Feed cable through
    4. Record location with FREE mobile app
    5. Use app to locate and recover cables for final fix
Quantity
Alt image

Voted Best New Way of Working at NHBC Awards



Designed for professionals and property developers seeking secure, straightforward, and cost-effective cable support and positioning. For a fast and efficient residential build, you need quick and economical building materials. Specify Cableboss CB01 – voted Best New Way of Working at the NHBC Awards – for its innovative approach to reducing waste on residential building sites.

My electrical wholesaler doesn’t stock Cableboss. Can they become a stockist?

Yes of course. We are expanding our distribution to make Cableboss as widely accessible as possible, so please ask your retailer to contact to email us on sales@cableboss.co.uk

Can I use the Cableboss CB01 bracket again?

No, the bracket will remain in the ceiling and/or wall space.
Cableboss metal cable clip and containment bracket showreel video preview

What real electricians think.

Don’t take our word for it—see what our customers have to say about how Cableboss improves cable support and management on real jobs.

Download our FREE app

Take photos, add notes and record every cable location. No more unnecessary visits and no more lost cables!

Download

Where can I download the mobile app?

Cableboss mobile app is available for download for free from the Apple store and/or the Google Play store for Android devices.

What type of data can be stored?

Store any text and photo information needed to help with the process of recovering cables and ultimately installing light fittings and sockets.

What information might be saved?

Typical information would include measurements from key features in the room (beams, windows, walls) along with descriptions of number of fittings needed. Simply use Cableboss to save as much as is needed to make recovering cables more efficient.

Where is the data saved?

When you use the app, all text and photos you record are stored on your own device. If you have backup enabled, the data is also saved using Google One for Android, Samsung cloud for Android, and iCloud for iOS.

Can I share the job photos and information with colleagues?

Yes – Simply, click SHARE and you can easily share all project information (photos and text) as you might normally do with WhatsApp, email, and other communications apps.

Can I purchase Cableboss brackets via the mobile app?

Yes – just click Shop and you will be able to purchase what you need from our website and have it posted directly to you.

About Cableboss

This all started a few years ago.



We run a building company in Bristol, UK, and noticed how much time was being lost during electrical installations on our sites. First and second fix electrics should have taken two visits—but more often than not, electricians needed a third. Why? Because cables were being moved, lost, or buried behind plasterboard, leading to extra labour, unnecessary access holes, and additional costs.



Typically, electricians returned after plasterboarding to cut downlighter holes and pull through their cables—hoping nothing had shifted. But if cables had moved, they’d drill, search, and repair—all before plastering. It was inefficient and costly.

We kept hearing the same frustrations:



From the building team:
“Why can’t the electrician just cut the holes where the cables are supposed to be?”
“Another access hole? Again?”



From the insulation and plasterboarding crew:
“There’s no way to know if the cables were meant to be left in place or pulled through.”
“How was I supposed to know that cable needed to be 600mm off the wall?”



From electricians:
“Who’s moved my cable?”
“Now I need to drill a hole to find it—again.”
“I lost the photo of where that smoke detector cable was. I accidentally deleted it while clearing out my phone!”



Surely, there had to be a better approach to cable support and management—a way to keep cables fixed in position and make their locations easy to record and recover?

There wasn’t. Everyone just accepted the inefficiency and repeated visits. Until now.



In 2020, we set out to change the game. Over two years of development, countless prototypes, and even app concepts, we created the Cableboss system: a simple, robust solution for cable support and management that keeps cables fixed in place and provides a way to accurately record their location.



The result?
A tool that dramatically reduces wasted time, missed cables, and unnecessary visits. Combined with the Cableboss mobile app, our system is the new standard in cable support and management.



Feedback from electricians and wholesalers has been overwhelmingly positive. It’s simple. It’s cost-effective. And it works.



Try it for yourself— Cableboss is the future of cable support and management.
